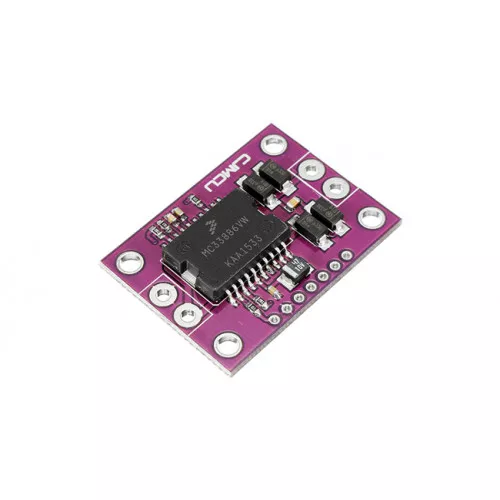

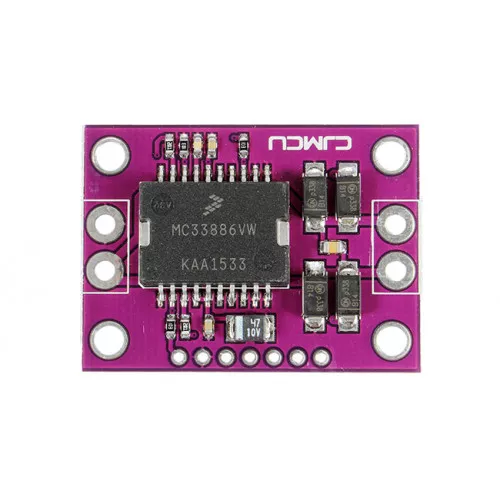

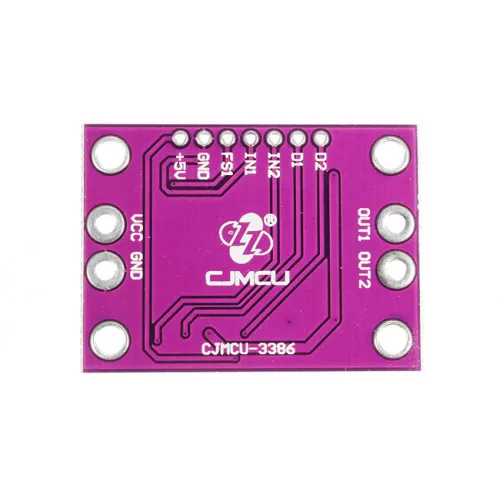

MC33886 H-Bridge 5A Module

The 33886 is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The 33886 is able to control continuous inductive DC load currents up to 5.0 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 10 kHz.

A Fault Status output reports undervoltage, short circuit, and overtemperature conditions. Two independent inputs control the two half-bridge totem-pole outputs. Two disable inputs force the H-Bridge outputs to tri-state (exhibit high impedance).

Quick Spec

  • Operating Voltage: 5 - 28V
  • Working Current: 5A
  • Operating Temperature: -40 - +125°C
  • PWM: 10kHz

Resources

Shipping List

  • 1 x MC33886 H-Bridge 5A Module


MC33886 H-Bridge 5A Module

  • Brand: Generic
  • Product Code: MC33886-MOD
  • Weight: 0.007kg
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UR446
    Stellenbosch In Stock A0232

    We ship free of charge between branches to complete your order.

  • R165.00 (Inc Tax: R189.75)
