NEO M8N Mini GPS Module

  • Product Code: NEO-M8N-MOD
  • Stock

    Warehouse Stock Status Location
    Centurion Out Of Stock AS61
    Stellenbosch In Stock X0218
  • R178.00 (price excl. VAT)

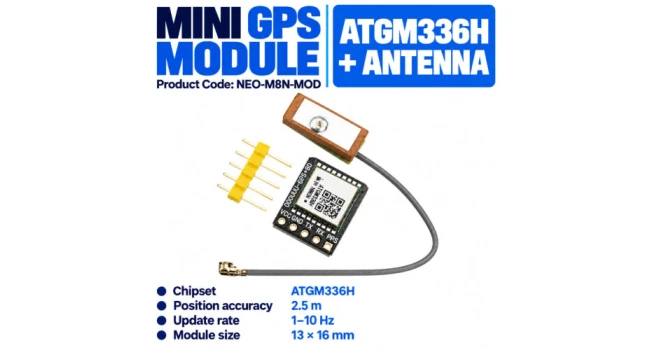

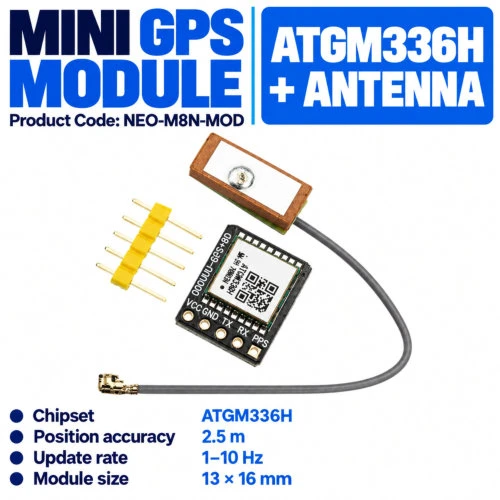

NEO M8N Mini GPS Module

The ATGM336H-5N module is a small family of high performance BDS/GNSS constellation positioning and navigation modules. This series of products are in a micro module, fourth generation low power single chip AT6558 based on GNSS SOC, which supports a variety of satellite navigation systems, including China BDS (Beidou navigation satellite system), the American GPS, the Russian GLONASS, European GALILEO, Japan QZSS and SBAS satellite augmentation system (WAAS, EGNOS, GAGAN MSAS). The AT6558 is a real sense Liuhe multimode satellite navigation chip, including 32 tracking channel. The GNSS signal can receive six satellite navigation system, and realize the joint positioning, navigation and timing. ATGM336H-5N has the advantages of high sensitivity, low power consumption and low cost. It is suitable for vehicle navigation, handheld positioning and wearable devices. It can directly replace the Ublox MAX module.

NEO M8 N MOD 001

Output Protocol

The ATGM332D-5N series module uses the UART as the main output channel and outputs it according to the protocol format of NMEA0183. For details, please refer to "CASIC Multimode Satellite Navigation Receiver Protocol Specification".

Quick Spec

  • Excellent positioning and navigation capabilities, support for single system positioning of BDS/GPS/GLONASS satellite navigation systems, and any combination of multiple system joint positioning, and support for QZSS and SBAS systems
  • Support A-GNSS
  • Cold start capture sensitivity: -148dBm
  • Tracking sensitivity: -162dBm
  • Positioning accuracy: 2.5 meters (CEP50, open space)
  • First positioning time: 32 seconds
  • Low power consumption: continuous operation <25mA (@3.3V)
  • Built-in antenna detection and antenna short circuit protection

Dimensions

TB2 Ulq Iq Nlmpu Fj SZPf XXc9i XXa 672934643

Resources

Shipping List

  • 1 X ATGM332D-5N GPS Module
  • 1 X IPX interface active antenna
  • 1 X 5-pin Header


Tags: neo, m8n, mini, gps, module
