Opto Isolator 24-5V Module

  • Brand: Generic
  • Product Code: OPTO-245
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock FD090
    Stellenbosch Out Of Stock Z4098
  • R85.00 (price excl. VAT)

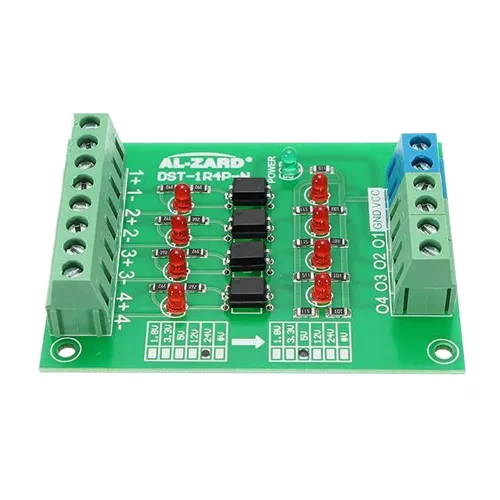

Opto Isolator 24-5V Module

This is a uni-directional 24VDC to 5VDC level-shifter with complete isolation. A practical use of such a device is to use an output signal from a 24VDC system such as from a boat, aircraft or alarm system, as an input to an Arduino. It can be used for signal isolation, PLC signal level converting, PNP/NPN signal to NPN signal, and signal level voltage converter.

Product Video

Quick Spec

  • Conversion frequency: 20KHz
  • Size: 72 x 55 x 18mm
  • Mounting Hole Size: 64 x 47mm, diameter 3mm
  • Input Voltage: 3.3 ~ 24V
  • Output Voltage: 0 ~ 5V

Common Anode Signal Input

OPTO-254-003

  • 24V Input = 5V Output

Common Cathode Signal Input

OPTO-254-004

  • 24V Input = 0V Output
  • 0V Input = 5V Output

Differential Signal Input

OPTO-254-005
  • High Input = 0V
  • Low Input = 5V

Shipping List

  • 1 X Opto Isolator 24-5V Module
