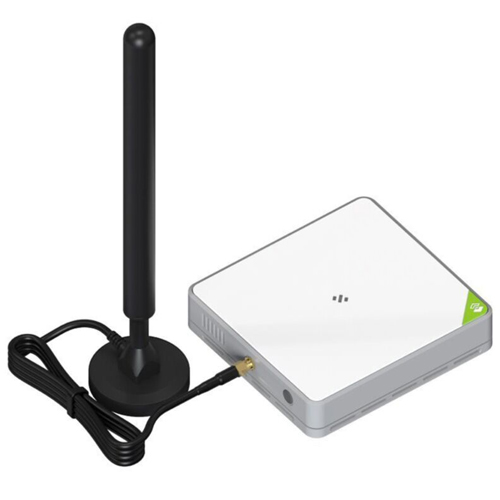

SenseCAP M2 Multi-Platform LoRaWAN® Indoor Gateway (SX1302)

The SenseCAP M2 Multi-Platform LoRaWAN® Indoor Gateway (SX1302) – EU868 Version is a high-performance, open-source LoRaWAN® gateway designed for reliable and scalable IoT deployments. Built around the advanced Semtech SX1302 LoRa chip and MT7628 processor, it delivers stable long-range communication, excellent sensitivity, and low power consumption — ideal for smart agriculture, building automation, and industrial monitoring systems.

This gateway supports multiple LoRaWAN® network servers, including The Things Network (TTN), ChirpStack, and AWS IoT Core, with flexible configuration options through the built-in web console. With PoE (Power-over-Ethernet) support, strong signal coverage up to 10 km, and compatibility with the EU868 frequency band, the SenseCAP M2 provides a cost-effective and dependable LoRaWAN® solution for both enterprise and maker projects.

Quick Spec

• Processor: MT7628 (MIPS24KEc @ 580 MHz)
• Memory: 128 MB DDR2 RAM, 32 MB Flash
• LoRaWAN® Chipset: Semtech SX1302 (8 channels)
• LoRaWAN® Protocol: V1.0.3 Class A / B / C
• Frequency Band: EU868
• Sensitivity: −125 dBm @ SF7 / −139 dBm @ SF12
• Transmit Power: Up to 26 dBm
• Connectivity: Ethernet (PoE supported), Wi-Fi (2.4 GHz 802.11 b/g/n)
• Antenna: LoRa 3 dBi external | Wi-Fi internal
• Input Voltage: DC 12 V / PoE (IEEE 802.3af, 40–57 V DC)
• Interfaces: RJ45 Ethernet × 1 / RP-SMA Female antenna connector × 1 / USB Type-C (console) / Micro SD slot (future use)
• Management: Web UI (Local Console), SenseCAP Portal, SenseCAP Mate App
• Coverage Range: Up to 10 km (line-of-sight)
• Operating Temp: −20 °C to +55 °C
• Humidity: 0–85% (non-condensing)
• Dimensions: 150.6 × 135 × 34 mm
Note: Not compatible with Helium network or SenseCAP Hotspot App

Dimensions

Layout

Resources

• Product Page
• User Manual

Shipping List

• 1 x SenseCAP M2 Multi-Platform LoRaWAN® Indoor Gateway (SX1302)
• 1 x PSU Adapter
• 1 x 3dBi LongRange Antenna
