SenseCAP Multi-Platform LoRaWAN Indoor Gateway - SX1302-4G

The SenseCAP Multi-Platform LoRaWAN® Indoor Gateway (SX1302-4G) is a high-performance, open-source LoRaWAN® gateway designed for reliable indoor IoT network deployment. Featuring the powerful Semtech SX1302 baseband chip and built-in 4G LTE, it ensures stable long-range communication for precision agriculture, smart buildings, and environmental monitoring applications.

SECPMPLW4-G-006

Supporting multiple LoRaWAN® frequency plans (865–923 MHz) and compatible with popular network servers such as TTN, ChirpStack, and AWS IoT, this gateway offers seamless connectivity and flexible integration. Its Power-over-Ethernet (PoE) capability, web-based setup interface, and strong signal coverage up to 10 km make it an ideal choice for both commercial and industrial LoRaWAN® networks.

Quick Spec

Processor: MT7628 (MIPS24KEc @ 580 MHz)
Memory: 128 MB DDR2 RAM, 32 MB Flash
LoRaWAN® Chipset: Semtech SX1302 (8 channels)
LoRaWAN® Protocol: V1.0.3 Class A/B/C
Frequency Band: EU868
Sensitivity: −125 dBm @ SF7 / −139 dBm @ SF12
Transmit Power: Up to 26 dBm
Connectivity: 4G LTE (Cat 4 FDD), Wi-Fi (2.4 GHz b/g/n), Ethernet (PoE supported)
Antenna: LoRa 3 dBi external | 4G 3 dBi (main) + 4 dBi (diversity) | Wi-Fi internal
Input Voltage: 12 V DC / PoE (IEEE 802.3af 40–57 V DC)

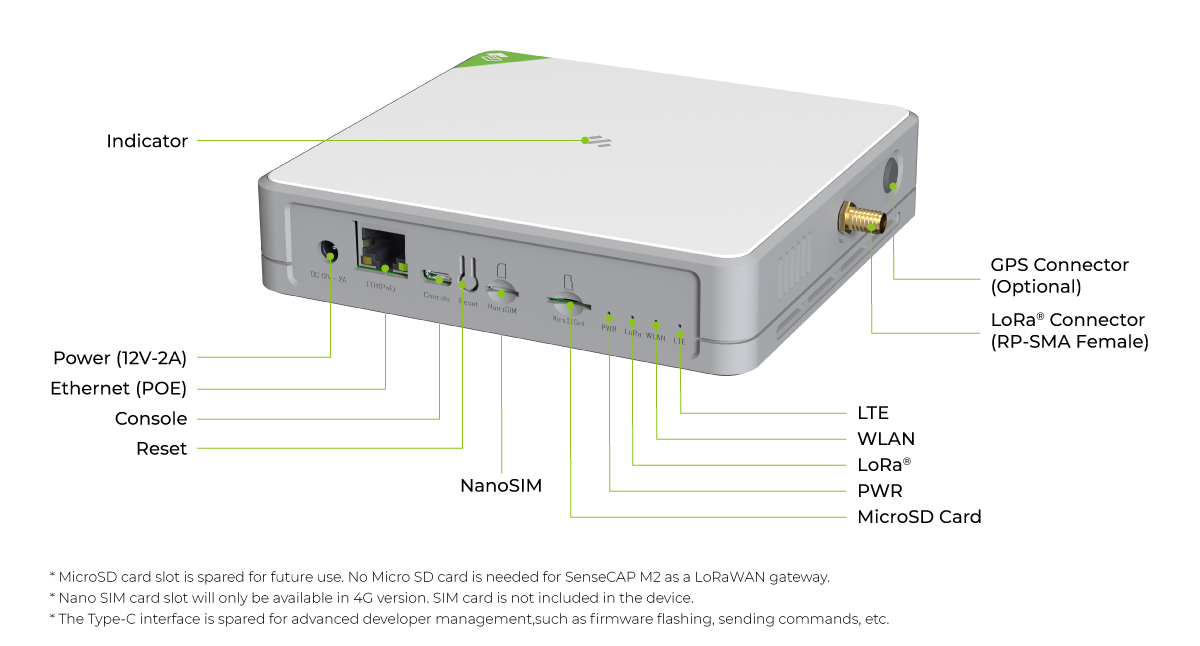

Interfaces: RJ45 Ethernet × 1 / RP-SMA antenna / USB Type-C (console) / Micro SD slot (future use)
Management: Web UI (Local Console & SenseCAP Portal)
Coverage Range: Up to 10 km (ideal conditions)
Operating Temp: −20 °C to +55 °C
Humidity: 0–85% (non-condensing)

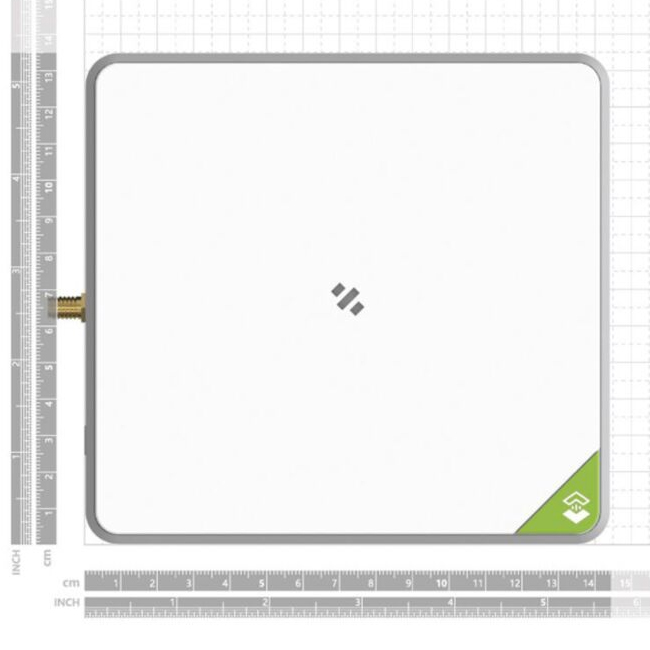

Dimensions: 150.6 × 135 × 34 mm
