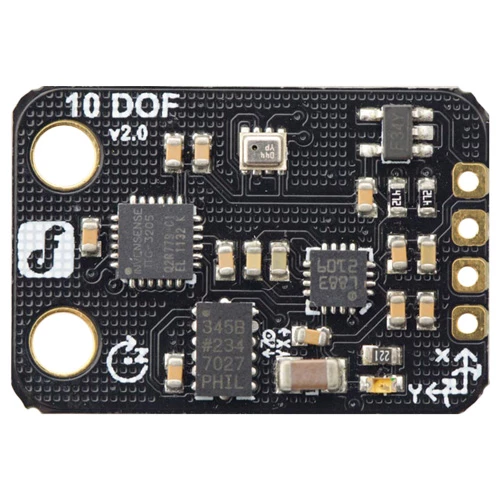

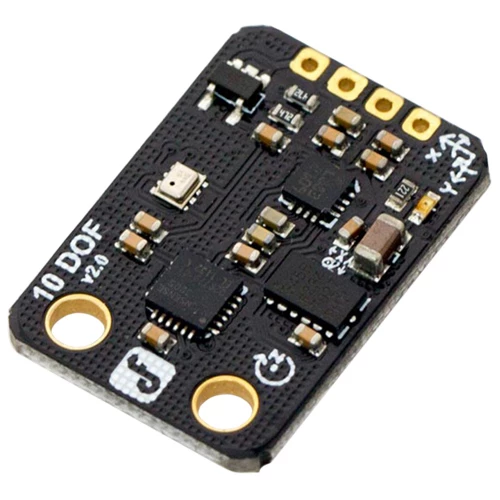

DF Robot Fermion 10 DOF IMU Sensor - Accelerometer, Gyroscope, Magnometer, & Barometer

The Fermion 10 DOF IMU Sensor is a compact and affordable motion and orientation sensing module from DF Robot. It integrates an accelerometer, gyroscope, magnetometer, and barometric pressure sensor to provide accurate measurements of velocity, orientation, heading, and altitude.



This updated V2.0 version now uses the upgraded BMP280 barometric pressure sensor, improving accuracy and stability. With a built-in low-noise LDO regulator, it supports a wide input voltage range (3–8V) and is directly compatible with Arduino boards. Its compact size with mounting holes makes it easy to integrate into aircraft, drones, balancing robots, indoor navigation systems, altimeters, or human–computer interaction projects.

Quick Spec

• Power Input: 3–8V (with low-noise LDO regulator)
• Interface: I2C
• Integrated Sensors:
• ADXL345 (accelerometer)
• ITG3205 (gyroscope)
• VCM5883L (magnetometer)
• BMP280 (barometer)
• LED power indicator
• Gold-plated PCB
• Compatible with Arduino controllers
• Dimensions: 26 × 18 mm

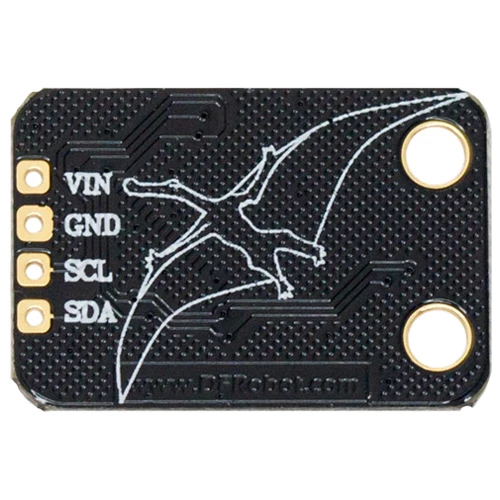

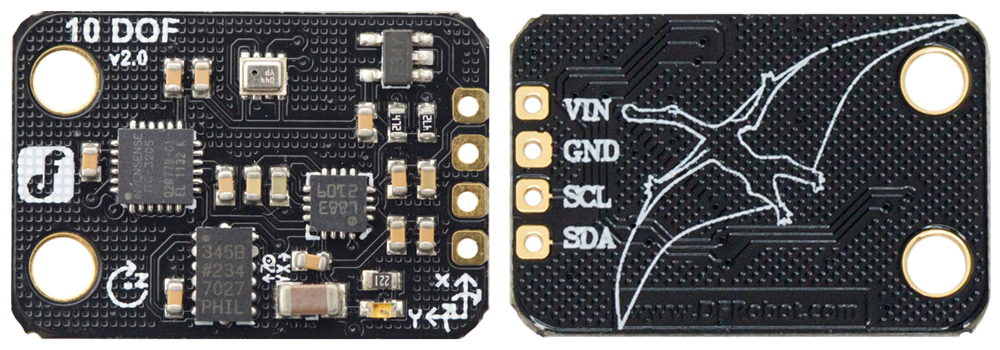

Pinout

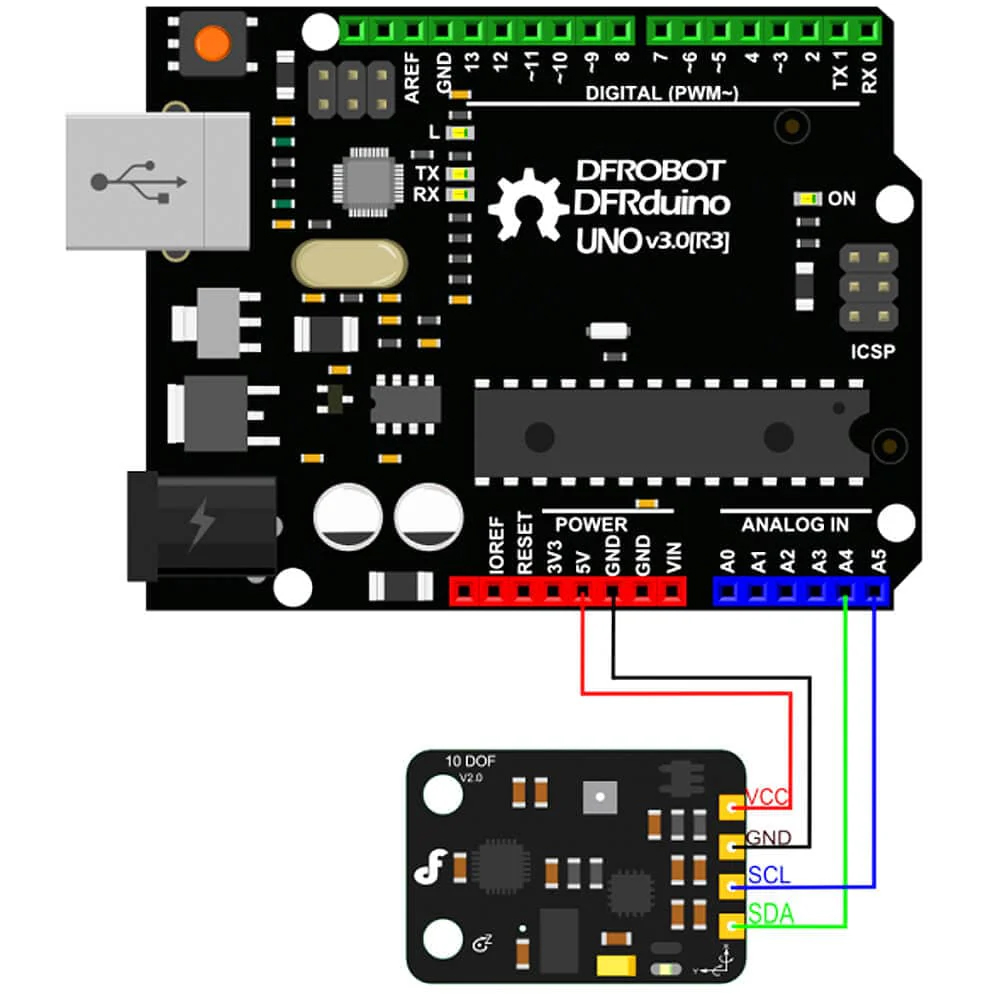

Wiring Diagram

Resources

• Product page
• Product Wiki
• Schematic
• Sensor Datasheet

Shipping List

• 1 x DF Robot Fermion: 10 DOF IMU Sensor
• 1 x 4-Pin SIL Male Header

DF Robot 10 DOF IMU Sensor

• Brand: DF Robot
• Product Code: SEN0140
• Weight: 0.008kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	DD069
Stellenbosch	In Stock	J6025
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R258.00 (Inc Tax: R296.70)
