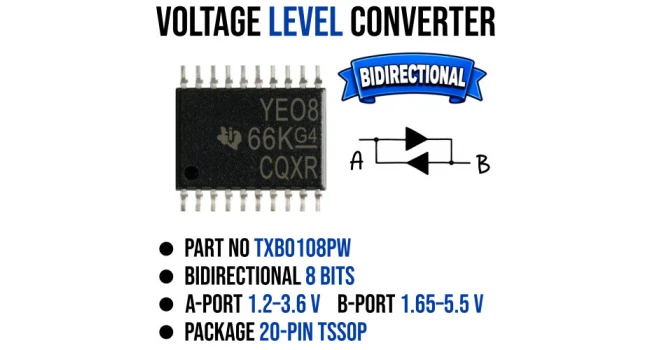

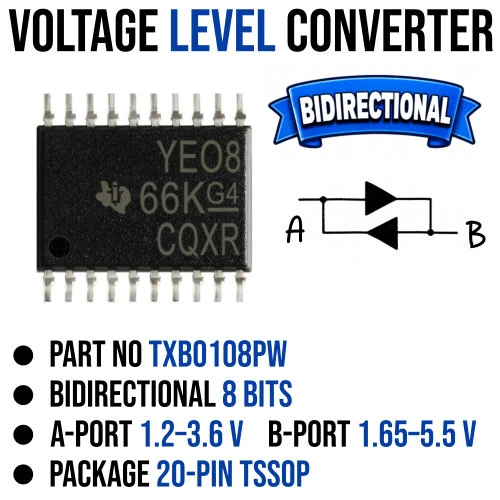

Bidirectional Voltage Level Converter - TSSOP-20
The TXB0108PW is an eight-channel bidirectional voltage-level translator that connects digital devices operating at different logic voltages. Automatic direction sensing eliminates manual direction control, making it ideal for interfacing microcontrollers, sensors, displays and other low-power digital circuits safely and efficiently.
Quick Spec
- Logic IC: TXB0108PW
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 8
- Voltage - VCCA: 1.2 ~ 3.6V
- Voltage - VCCB: 1.65 ~ 5.5V
- Output Type: Tri-State, Non-Inverted
- Data Rate: 100Mbps
- Operating Temperature: -40 ~ +85°C
- Features: Auto-Direction Sensing
- Mounting Type: Surface Mount (SMD
- Package / Case: 20-TSSOP

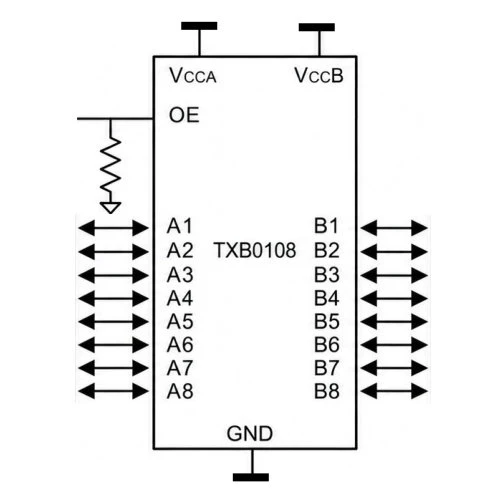

Typical Application
Resources
Shipping List
- 1 x Bidirectional Voltage Level Converter - TSSOP-20
Bidirectional Voltage Level Converter - TSSOP-20
- Brand: Generic
- Product Code: TXB0108PW
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | EE156 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R20.00 (Inc Tax: R23.00)
