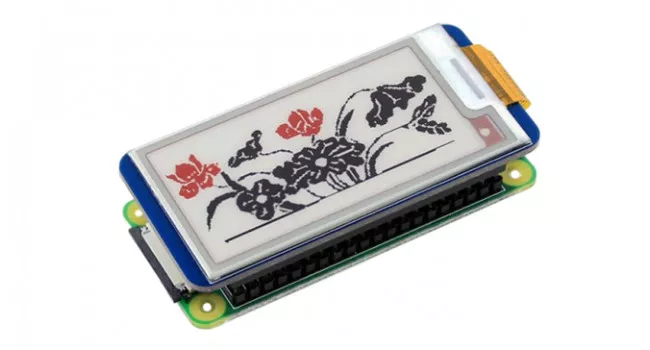

Wave 2.13inch E-Ink Display for Raspberry Pi - 3 Colours
This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Quick Spec
- Operating Voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Display Size: 23.71 x 48.55mm
- Dot Pitch: 0.229 x 0.228
- Resolution: 212 x 104
- Display Colour: red, black, white
- Grey Level: 2
- Full Refresh Time: 15s
- Refresh Power: 26.4mW(typ.)
- Standby Power: <0.017mW
- Viewing Angle: >170°
- Dimension: 65 x 30.2mm
- Net Weight: 26g
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V |
| GND | Ground |
| DIN | SPI MOSI |
| CLK | SPI SCK |
| CS | SPI chip select (Low active) |
| DC | Data/Command control pin (High for data, and low for command) |
| RST | External reset pin (Low for reset) |
| BUSY | Busy state output pin (Low for busy) |
Resources
Shipping List
- 1 x Wave 2.13inch E-Ink Display for Raspberry Pi - 3 Colours
- 1 x RPi Screws Pack (2pcs)
- 1 x PH2.0 20cm 8-Pin Cable
Wave 2.13inch E-Ink Display for Raspberry Pi - 3 Colours
- Brand: Waveshare
- Product Code: W13448
- Weight: 0.026kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock | B0093 |
We ship free of charge between branches to complete your order.
-
R295.00 (Inc Tax: R339.25)
