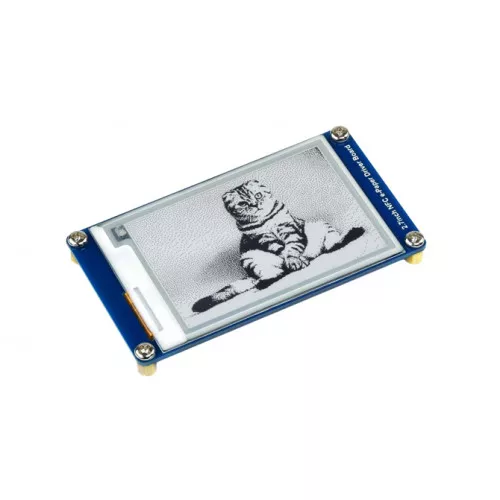

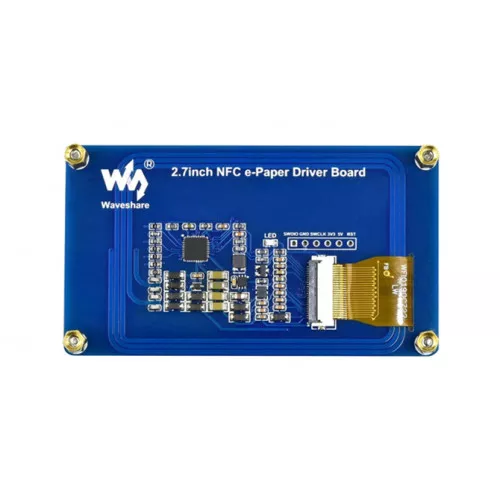

Wave 2.7" NFC Powered E-Paper Display

Waveshare's 2.7-inch Passive NFC-Powered e-paper device can receive both data and power over NFC, the same technology used to wirelessly recharge smartphones. So when it comes time to update the e-paper device with new content, an NFC-enabled smartphone and NFC Tag app can be used to handle the transfer and power required to perform the change. The end result is very cheap e-paper devices that never need to be recharged.

W18136-003

The 2.7-inch model has a screen resolution of 276x176, 170-degree viewing angles, and a black & white output. Screen refresh times are ±6 seconds.

Quick Spec

  • Power: NFC-powered
  • Resolution: 276x176
  • Dot Pitch: 0.217 × 0.217
  • Refresh Time: 6s
  • Display Colour: black, white
  • Viewing Angle: >170°
  • Display Size: 57.29 × 38.19mm
  • Outline Dimension: 84.5 × 47.50mm
  • Weight: 164g

Refreshing Examples

2-7inch-NFC-Powered-e-Paper-Module-details-gif1

2-7inch-NFC-Powered-e-Paper-Module-details-gif2

Resources

Shipping List

  • 1 x Wave 2.7" NFC Powered E-Paper Display


Wave 2.7" NFC Powered E-Paper Display

  • Brand: Waveshare
  • Product Code: W18136
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock UR061
    Stellenbosch New Product Arriving Soon

    We ship free of charge between branches to complete your order.

  • R455.00 (Inc Tax: R523.25)
