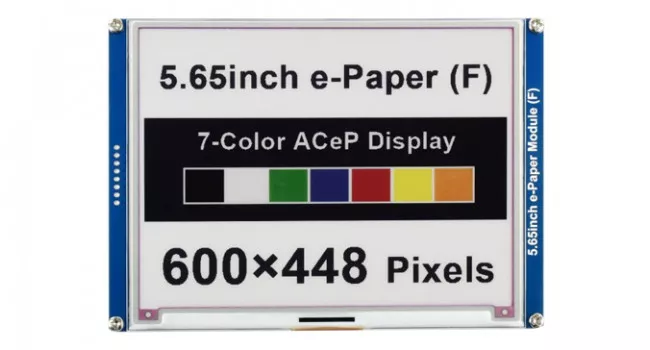

Wave 5.65" e-Paper Display - 7 Colour
This is an E-Ink raw display, 5.65inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports 7 colours. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
The Main Features of the E-ink Display are:
- Advanced Color ePaper (ACeP) technology, supports 7-Color display
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Quick Spec
- Operating Voltage: 3.3V/5V
- Standby Current: <0.01uA (almost none)
- Display Colour: ACeP 7-Color
- Grey Scale: 2
- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 15s
- Refresh Power: 50mW (typ.)
- Dot Pitch: 0.1915 × 0.1915mm
- Resolution: 600 × 448 pixels
- Viewing Angle: >170°
- Display Size: 114.9 × 85.8mm
- Dimensions: 138.5 × 100.5mm
- Net Weight: 174g
Resources
Shipping List
- 1 x 5.65inch e-Paper Module
- 1 x PH2.0 20cm 8 Pin
Wave 5.65" e-Paper Display - 7 Colour
- Brand: Waveshare
- Product Code: W18295
- Weight: 0.174kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | New Product Arriving Soon |
We ship free of charge between branches to complete your order.
-
R1,365.00 (Inc Tax: R1,569.75)
