Wave Pi Pico LoRa Node - 433MHz

The Wave Pi Pico LoRa Node - 433MHz is a LoRa node expansion module for Raspberry Pi Pico, built around the SX1262 chipset. Compared to the SX127X series, it offers better performance, higher sensitivity, and lower power consumption. It supports the LoRaWAN protocol, enabling seamless integration with TTN, ChirpStack, and other LoRa Cloud services through a compatible LoRa gateway.



Designed for long-range communication with excellent interference immunity, this module supports FSK, GFSK, and LoRa modulation. It features an onboard PH1.25 battery header with a charging controller, allowing connection to a rechargeable lithium battery for mobile applications. The module is equipped with a temperature-compensated crystal oscillator for stable operation under extreme temperature conditions.

Quick Spec

• RFID: SX1262
• Frequency Band: 433MHz
• Modulation: LoRa/(G)FSK
• LoRaWAN Support: Yes
• Emission Power: Up to 22dBm
• Emission Current: 107mA @ 22dBm
• Receiving Current: 5.3mA @ 125KHz
• Operating Voltage: 3.3V
• Communication Bus: SPI
• Battery Support: PH1.25 header with charging IC for lithium battery connection
• Operating Temperature: -40 ~ 85℃
• Connectivity: Compatible with Raspberry Pi Pico and Pico series boards
• Additional Features: Preamble detection, CRC, 256-byte data packet engine
• Indicators: 2 onboard LED indicators for module status
• Dimensions: 21 × 52mm

Dimensions

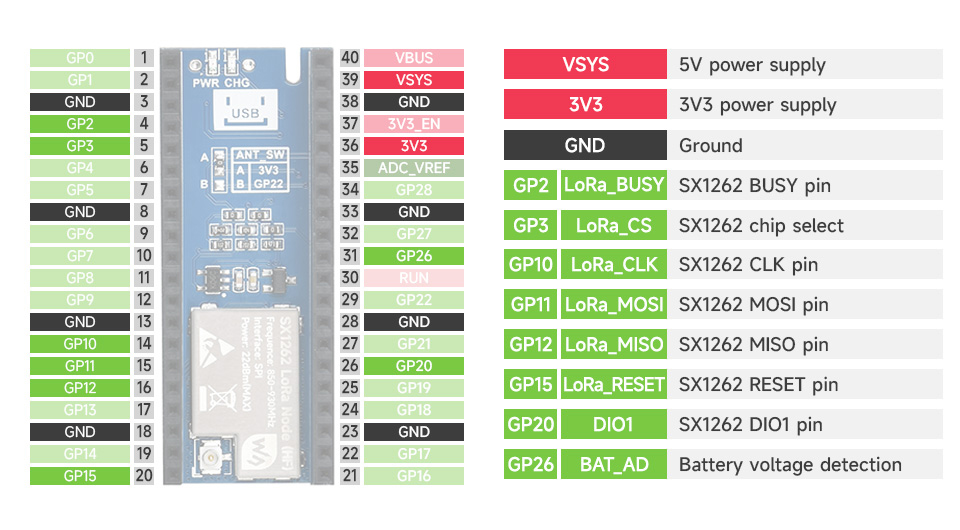

Pinout

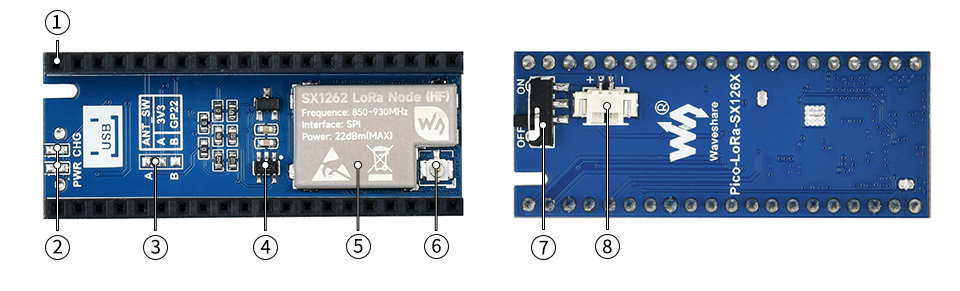

Board Layout

1. Raspberry Pi Pico header
2. Status indicators
PWR: power indicator
CHG: recharge indicator

3. RF switch control
A: controlled by high level
B: controlled by GPIO22

4. MCP73831 recharge IC
5. SX1262 module
6. IPEX 1 antenna connector
7. Power switch
8. PH1.25 battery header

Resources

• Product Page
• Product Wiki
• Schematic
• SX1262 Datasheet
• Demo Code

Shipping List

• 1 x Wave Pi Pico LoRa Node - 433MHz
• 1 x 3.7V 600mAh Li-po battery
• 1 x Antenna 2DB
• 1 x IPEX1 to SMA wire
