LuckFox Pico Pro Max Linux Dev Board - RV1106

The LuckFox Pico Pro Max Linux Development Board is powered by the Rockchip RV1106G3 chip, designed for AI and IPC visual processing applications. It features a single-core ARM Cortex-A7 processor with NEON and FPU integration, alongside a built-in NPU supporting INT4/INT8/INT16 operations with a computing power of up to 1 TOPS.

W25719-004

Equipped with a hardware-based ISP supporting advanced algorithms like HDR, 3DNR, and gamma correction, the board ensures high-quality image processing. With support for buildroot and Ubuntu 22.04, and interfaces like GPIO, UART, SPI, and I2C, it caters to flexible and rapid development needs.

Quick Spec

Chip: Rockchip RV1106G3
Processor: Cortex-A7 1.2GHz
NPU: 1 TOPS, INT4/INT8/INT16 operations
ISP: Supports up to 5M @30fps input
Memory: 256MB DDR3L
Connectivity: 10/100M Ethernet controller
Interfaces: GPIO (26 pins), USB 2.0 Host/Device, MIPI CSI (2-lane)
Storage: 256MB SPI NAND Flash
Wi-Fi/Bluetooth: No
Power over Ethernet (PoE): No

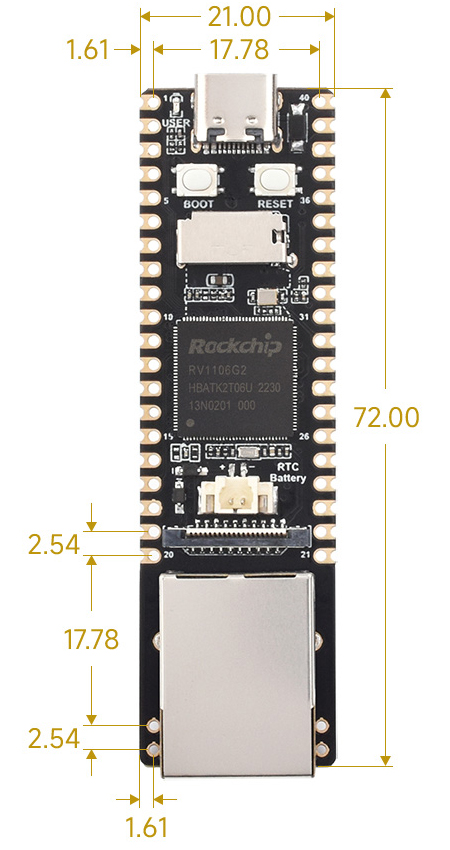

Dimensions

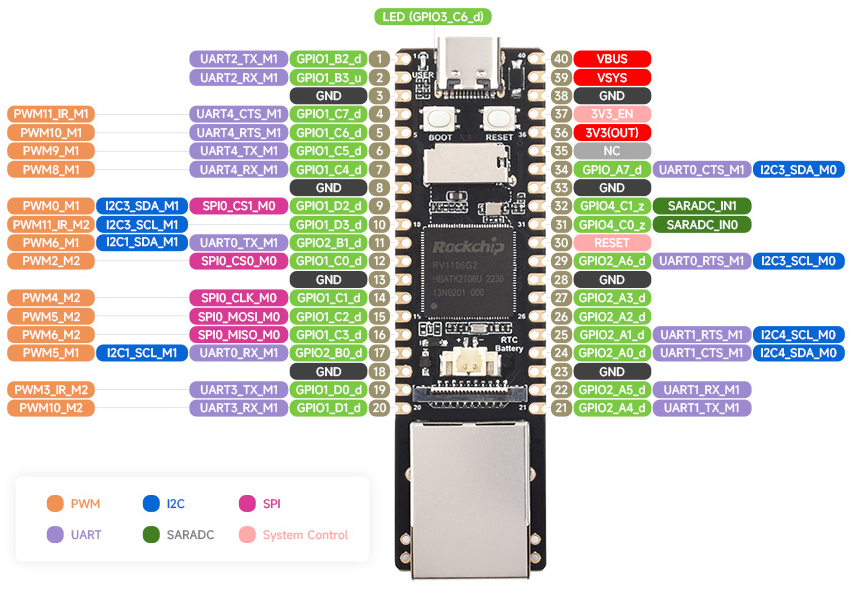

Pinout

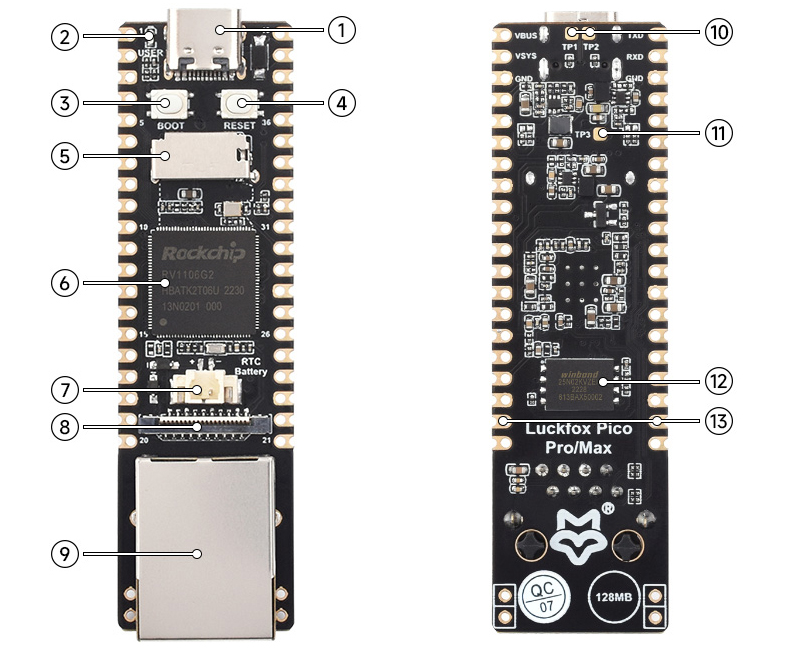

Board Layout

USB Type-C connector: for power supply and program burning
ACT-LED
BOOT button: Press it when powering on to enter download mode
RESET button
TF card slot
RV1106: Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)
RTC battery header: MX1.25 connector, for connecting RTC battery
CSI camera interface: MIPI CSI 2-lane
RJ45 Ethernet port
USB test pads

TP1: USB_N
TP2: USB_P
