• Description

Wave 5MP Camera Module - Wide-Angle Lens Type B

The Waveshare 5MP Camera Module – Wide-Angle Lens Type B is a high-quality imaging solution built around the MIS5001 CMOS sensor. Delivering crisp 5MP resolution (2592 × 1944), it offers exceptional image clarity, low noise, and strong low-light performance. The wide 95.5° field of view and distortion-free lens make it perfect for applications that require broader coverage without image warping, such as surveillance, robotics, or AI vision systems.




Compact and reliable, this camera module is optimized for use with Waveshare’s Luckfox Pico Pro, Max, and Ultra boards powered by the RV1106 chip. With its 2-lane MIPI CSI-2 interface, F2.4 aperture, and 2.88 mm focal length, it provides a perfect balance between detail and coverage, ensuring consistent image quality in embedded and industrial applications.

Quick Spec

• Sensor: MIS5001 CMOS
• Resolution: 5MP (2592 × 1944)
• CMOS size: 1/2.7″
• Lens: Wide-angle, distortion-free
• Focal length: 2.88 mm
• Aperture: F2.4
• Field of View (FOV): 95.5°
• Distortion: < 1%
• Shutter: Rolling shutter
• Interface: 2-lane MIPI CSI-2
• Compatibility: Luckfox Pico Pro / Max / Ultra (RV1106-based)

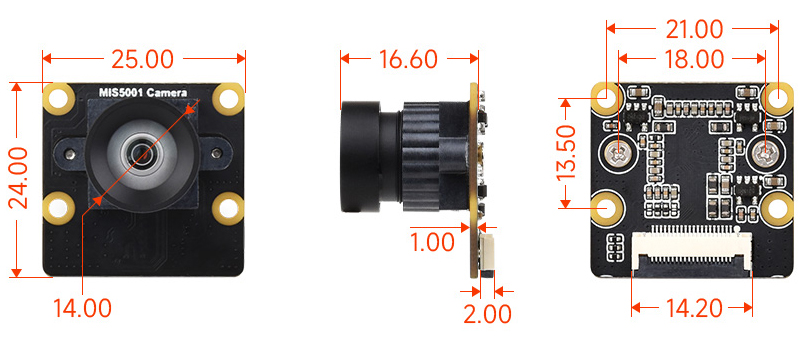

Dimensions

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x Wave 5MP Camera Module - Wide-Angle Lens Type B
• 1 x 20-Pin FFC Camera Cable

Wave 5MP Camera Module - Wide-Angle Lens Type B

• Brand: Waveshare
• Product Code: W30591
• Weight: 0.015kg
• Product Status : Active
