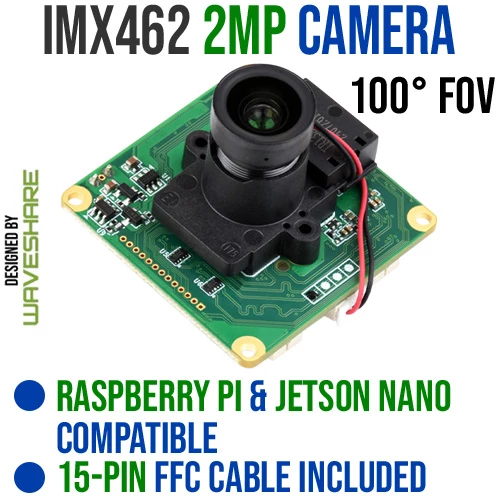

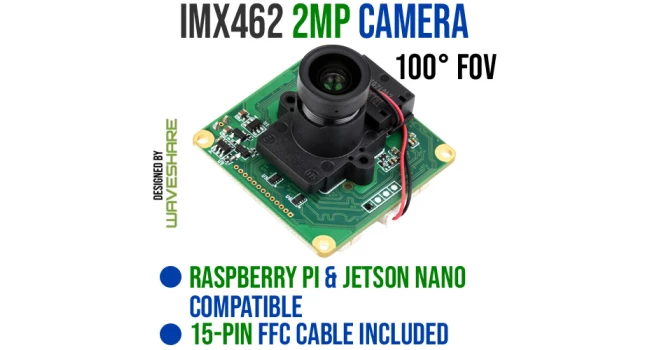

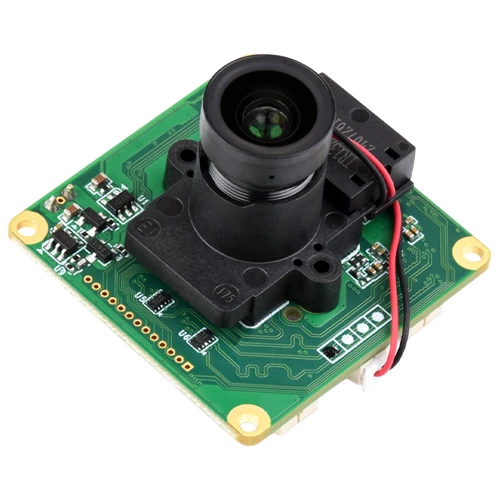

Wave IMX462 2MP IR-CUT Camera – 100° FoV
The Wave IMX462 2MP IR-CUT Camera – 100° FoV is a high-performance starlight camera module based on the Sony IMX462LQR-C STARVIS sensor, designed for exceptional low-light imaging. Featuring back-illuminated pixel technology and a large 1/2.8" CMOS sensor, it delivers crisp, detailed images in both visible and near-infrared light. The integrated IR-CUT filter allows automatic or manual switching between day (RGB) and night (monochrome) modes, ensuring accurate color reproduction in daylight and enhanced clarity in darkness.
With a wide 99° diagonal field of view, F1.0 aperture, and 4mm fixed-focus lens, this camera captures clear, wide-angle footage suitable for security, surveillance, and vision-based AI projects. It supports 1080p video at up to 30fps, features advanced 2D/3D noise reduction, HDR, and defogging functions, and is fully compatible with Raspberry Pi and Jetson Nano platforms for easy integration into embedded vision systems.
Quick Spec
- Sensor: Sony IMX462LQR-C STARVIS
- Resolution: 1920 × 1080 (2MP)
- Sensor Size: 1/2.8" CMOS
- Pixel Size: 2.9 µm × 2.9 µm
- Frame Rate: 1080p @ 25/30fps
- Aperture: F1.0
- Focal Length: 4.0 mm
- Field of View (FOV): 99.1° (D) / 83.5° (H) / 44.6° (V)
- Shutter: 1/25 (1/30)s – 1/50,000s
- Exposure: Auto / Manual
- White Balance: Auto / Manual
- Image Enhancements: DOL-WDR, Backlight Compensation, Defogging
- Noise Reduction: 2D/3D
- IR-CUT: Automatic / Manual day-night switching
- Focus: Fixed
- Operating Temp: -10°C ~ 60°C
- Compatibility: Raspberry Pi series, Jetson Nano
Dimensions
Starlight Camera
Clear Imaging even in Low Light Conditions

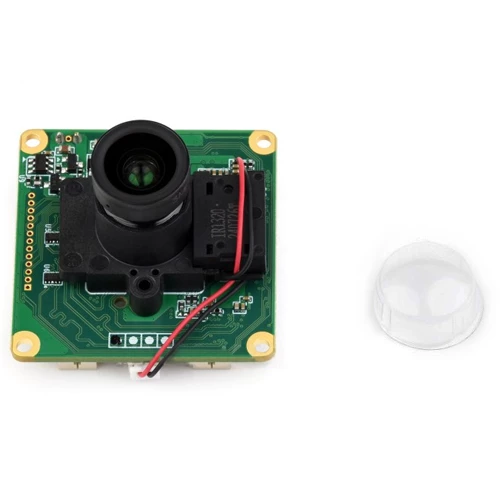

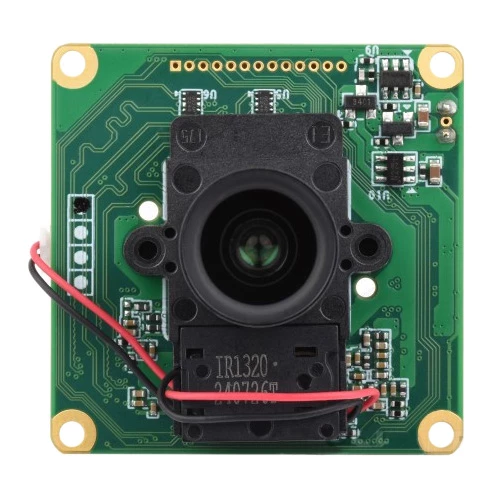

Built-in IR-CUT
Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

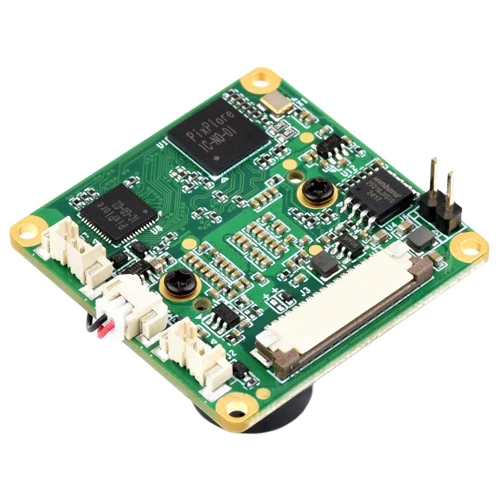

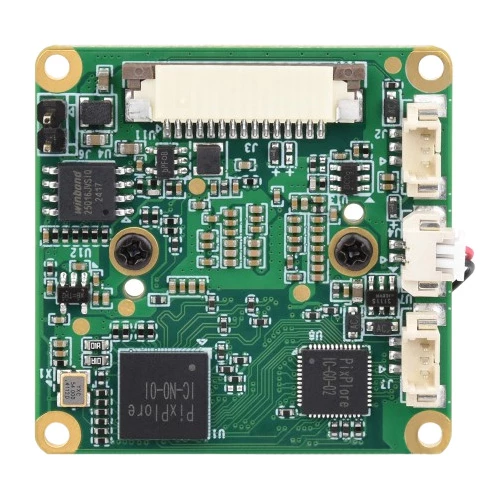

Onboard ISP
Integrated Image Signal Processing Circuit, Clearer Imaging Effect
Resources
Shipping List
- 1 x Wave IMX462 2MP IR-CUT Camera – 100° FoV
- 1 x 15-Pin FFC Camera Cable
- 1 x 15-Pin Pi FFC Camera Cable
Wave IMX462 2MP IR-CUT Camera – 100° FoV
- Brand: Waveshare
- Product Code: W29449
- Weight: 0.038kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF117 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,520.00 (Inc Tax: R1,748.00)
