Wave IMX462 2MP IR-CUT Camera – 127.9° FoV
The Waveshare IMX462 2MP IR-CUT Camera – 127.9° FOV is a high-sensitivity starlight camera designed for exceptional performance in both visible and near-infrared light. Featuring the Sony IMX462 STARVIS sensor with back-illuminated pixel technology, it captures sharp, low-noise images even in extremely low-light conditions. The onboard IR-CUT filter allows seamless switching between day and night modes, while the integrated ISP enhances image quality for clearer, more balanced visuals across different environments.
With a wide 127.9° field of view, F1.61 aperture, and 3.18 mm focal length, this fixed-focus camera delivers an expansive perspective ideal for computer vision, surveillance, and AI imaging applications. It supports resolutions up to 1920 × 1080 at 30 fps, offers advanced image processing features like DOL-WDR and 2D/3D noise reduction, and is compatible with both Raspberry Pi boards and NVIDIA Jetson Nano platforms for versatile integration.
Quick Spec
- Sensor: Sony IMX462LQR-C STARVIS
- Resolution: 2MP (1920 × 1080)
- Pixel size: 2.9 μm × 2.9 μm
- Lens: Fixed focus, F1.61 aperture
- Focal length: 3.18 mm
- Field of View (FOV): 127.9°(D) / 106.9°(H) / 56.9°(V)
- Shutter: Rolling shutter
- Frame rate: 1080p @ 25/30 fps
- Features: 2D/3D noise reduction, DOL-WDR, defogging, backlight compensation
- Day/Night: IR-CUT filter with manual or external switching
- Operating Temp: -10°C to 60°C

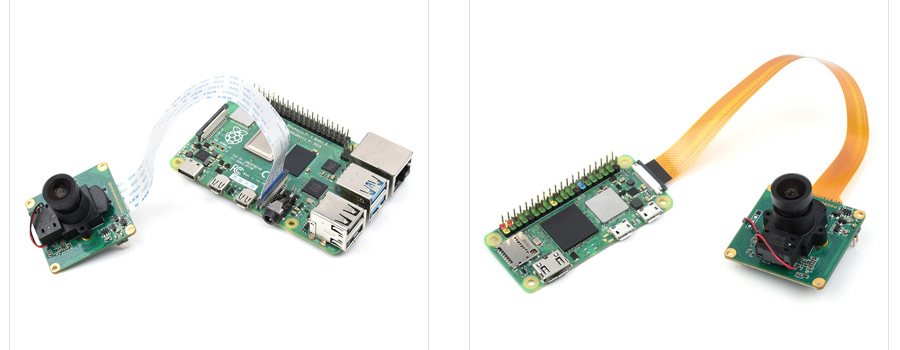

- Compatibility: Raspberry Pi & Jetson Nano
Dimensions

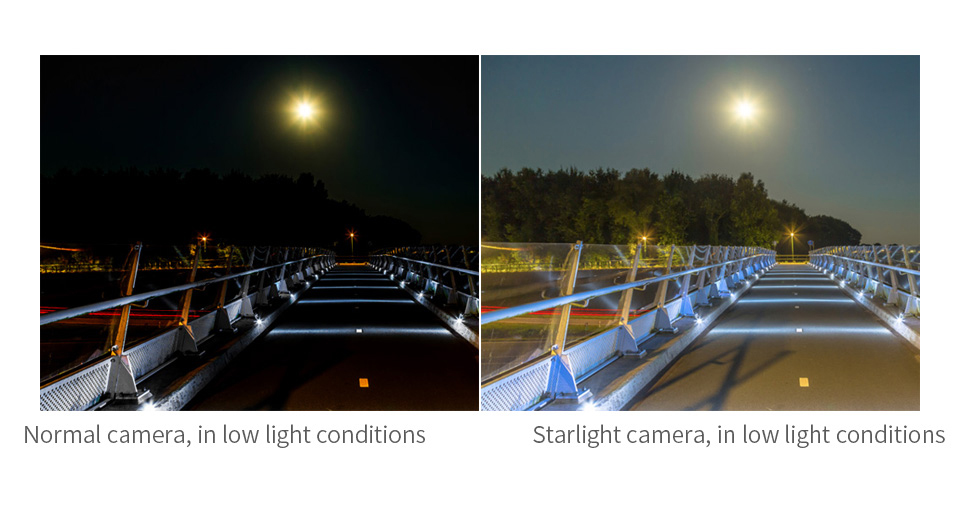

Starlight Camera
Clear Imaging even in Low Light Conditions
Built-in IR-CUT
Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect
Onboard ISP
Integrated Image Signal Processing Circuit, Clearer Imaging Effect
Resources
Shipping List
- 1 x Wave IMX462 2MP IR-CUT Camera – 127.9° FoV
- 1 x 15-Pin FFC Camera Cable
- 1 x 15-Pin Pi FFC Camera Cable
Wave IMX462 2MP IR-CUT Camera – 127.9° FoV
- Brand: Waveshare
- Product Code: W22440
- Weight: 0.035kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | Limited Stock | FF153 |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R1,520.00 (Inc Tax: R1,748.00)
