• Description

Wave TVOC Environmental Gas Sensor – UART

The Wave TVOC Environmental Gas Sensor – UART is a compact, high-performance module designed for accurate detection of Total Volatile Organic Compounds (TVOCs) in the air. It uses a semiconductor-based sensing principle, where gas molecules react with heated sensitive materials to alter resistance, allowing precise measurement of VOC concentrations. With fast response times, stable operation, and a simple UART communication interface, this sensor offers reliable performance in smart home systems, air purifiers, and industrial air quality monitoring.



Engineered for scalability and long-term use, the sensor features high sensitivity, low power consumption, and a service life of up to 5 years. It’s ideal for applications such as environmental monitoring, vehicle air purification, or handheld air quality analyzers. The module supports 5V power input and 3.3V logic level UART output, making it easily integrable with microcontrollers like Arduino, Raspberry Pi, and ESP32.

Quick Spec

• Supply Voltage: 5V
• Logic Voltage: 3.3V
• Interface: UART (TTL, 3.3V level)
• Baud Rate: 115200
• Detection Range: 0.1–100 ppm
• Response Time: <20s
• Startup Time: <120s
• Refresh Rate: 1Hz
• Operating Current: ≤60mA
• Operating Temperature: -20°C to 50°C
• Operating Humidity: ≤96% RH
• Service Life: 5 years
• Dimensions: 27 × 20 × 4.3 mm
• Mounting Hole Diameter: 2.0 mm

Dimensions

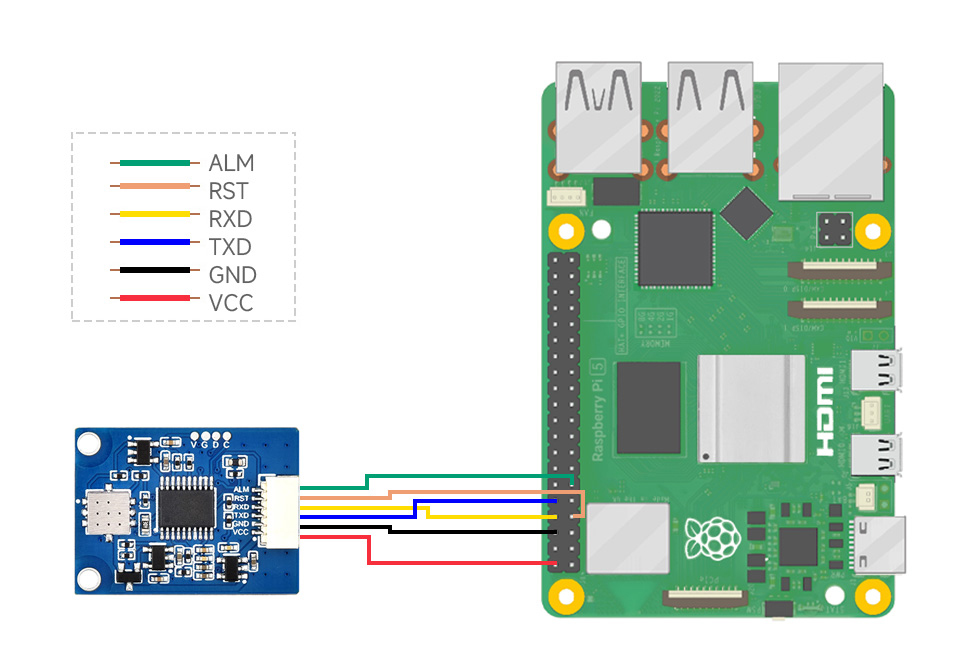

Wiring Diagram

Resources

• Product Page
• Product Wiki
• Datasheet

Shipping List

• 1 x Wave TVOC Environmental Gas Sensor – UART
• 1 x SH1.0 6-Pin cable

Wave TVOC Environmental Gas Sensor – UART

• Brand: Waveshare
• Product Code: W30712
• Weight: 0.005kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R164.00 (Inc Tax: R188.60)
