WS2812B Intelligent SMD LED'S (10 Pack)
The WS2812B may look like a common 5050-sized (5x5mm) SMD LED, but there’s actually an integrated control circuit embedded inside there too. If you look really hard, you can see the tiny black chip hidden in there, along with minuscule gold wires connecting the chip to the LED. This LED is certainly more than meets the eye! The ‘B’ at the end of the WS2812 name denotes that these specific LEDs are equipped with and only require FOUR pins instead of SIX! The LED itself is unlike most RGB (Red/Green/Blue) LEDs. The brightness of each color can be adjusted using a serial string to one of 256 different levels. That means there are 16,777,216 (2563) possible combinations of colors. You can produce any color from white to black (off), or salmon to sienna.
Quick Spec
- Supply (VDD) : 3.5 - 5.3V
- Can produce up to 16.7M Color combinations
- Can produce 256 Brightness Levels
- Design: 4-pin Design - 5050 SMD
- Send data at speeds of 800Kbps
Pin Configuration

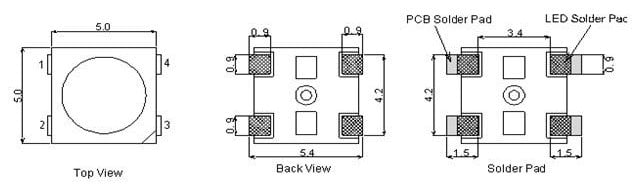

Mechanical Dimensions

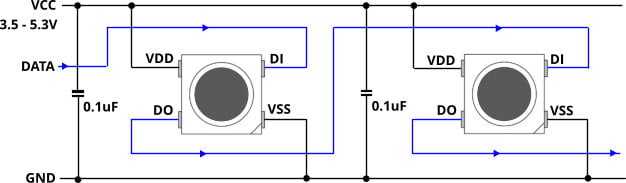

Wiring in Cascade
Resources
- WS2812B Datasheet
- Fast IO Library for Arduino
- Adafruit WS2812 Neopixel Library on Github
- Sparkfun Hookup Guide
- Easy setup Guide bu Tweaking4All
Shipping List
- 1 x WS2812B (10 Pack)
WS2812B Intelligent SMD LED'S (10 Pack)
- Brand: Generic
- Product Code: WS2812B-5050
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | A12-01 |
| Stellenbosch | In Stock | 821 |
We ship free of charge between branches to complete your order.
-
R16.00 (Inc Tax: R18.40)
