WS2812B LED TH Diffused - 5mm (4 Pack)
These WS2812B LEDs are an easy way to add colourful and complex lighting effects to a project. Each RGB LED contains an integrated WS2812B driver that allows it to be controlled with a high-speed one-wire interface and the diffused cover ensures even illumination and a soft, pleasing glow.. Multiple LEDs can be connected together to form a chain of RGB LEDs, and the entire chain can be controlled from a single microcontroller pin.
Quick Spec
- One-wire digital control interface
- Can form a chain of individually-addressable RGB LEDs
- 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
- Power Supply: DC 4.5V - 6V
- Internal Frequency: 800kHz
- Draws approximately 50mA at 5 V with red, green, and blue at full brightness
- Color ordering: red, green, blue

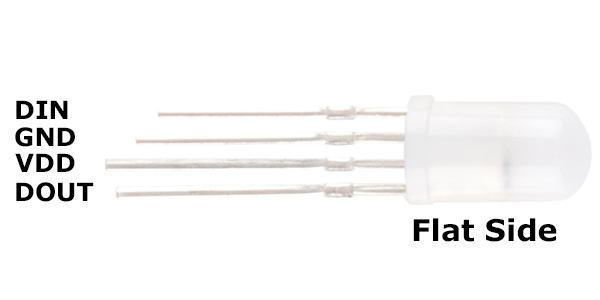

Pinout
Code
Resources
Shipping List
- 4 x WS2812B LED TH Diffused - 5mm
WS2812B LED TH Diffused - 5mm (4 Pack)
- Brand: Generic
- Product Code: WS2812B-5MM
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | UH025 |
| Stellenbosch | In Stock | Z7022 |
We ship free of charge between branches to complete your order.
-
R14.00 (Inc Tax: R16.10)
