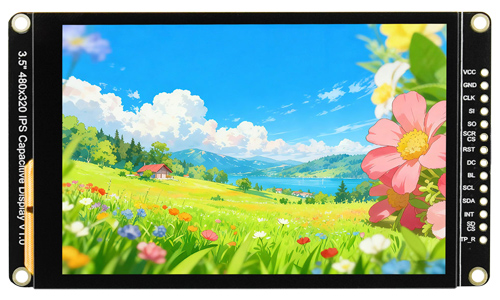

DF Robot 3.5 Inch IPS Capacitive Touch Display (480×320, SPI/GDI) - Chipset ST7365P

The DFRobot 3.5" IPS Capacitive Touch Display is a high-clarity 480×320 HVGA screen designed for seamless integration with ESP32 and Arduino platforms. Built with advanced optical full lamination (optical bonding), the touch panel and LCD are fused into a single layer, eliminating internal air gaps. The result is brighter visuals, reduced glare, improved dust resistance, and a premium, smartphone-like touch experience—ideal for professional-grade IoT dashboards and HMI systems.

DFR1092 009

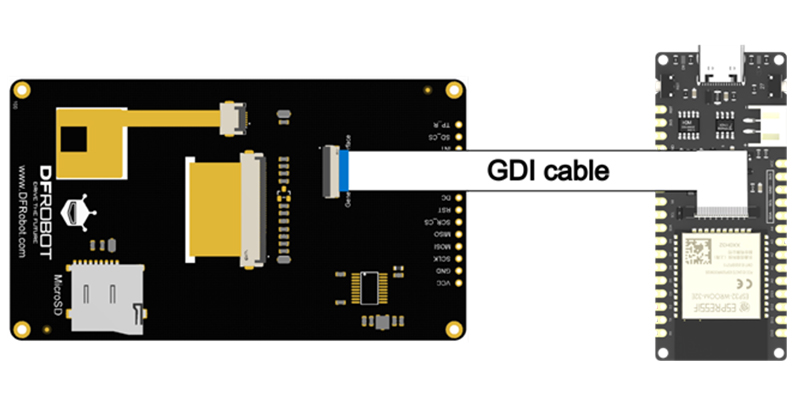

Featuring both a universal SPI interface and DFRobot’s dedicated GDI port, this display offers flexible connectivity. When paired with FireBeetle 2 series boards, the included FPC cable enables a clean, single-cable connection—no jumper wires required. With a wide 178° viewing angle, 5-point capacitive touch, onboard MicroSD slot, and full compatibility with the Arduino GDL library, this module accelerates GUI development for smart home panels, monitoring systems, and interactive projects.

Quick Spec

Screen Type: IPS 3.5-inch Res:480 × 320
Interface: SPI / GDI Connector
Type: Capacitive, Multi-Touch 5-point
Surface: Anti-fingerprint coating
Chipset: ST7365P
Viewing Angle: 178°
Brightness: 300 cd/m²
Contrast Ratio: 800:1
Production Process: Optical full lamination

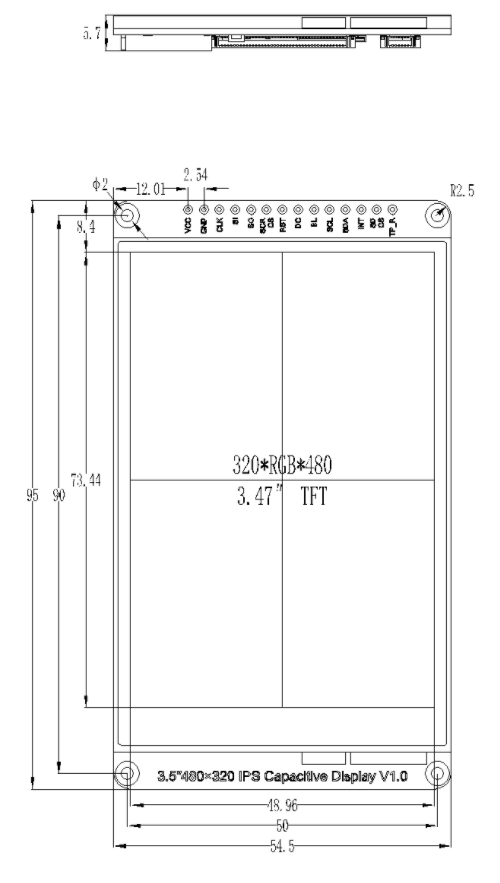

Active Area: 48.96 × 73.94 mm
Interface: SPI / GDI
Operating Voltage: 3.3V–5V DC
Operating Current: 80mA @ 5V
Dimensions: 95.0 × 54.5 × 5.7 mm
Mounting Hole Diameter: 2.0 mm
Mounting Hole Spacing: 90 × 50 mm
Onboard MicroSD Card Slot

What is a GDI Port (Interface)

The DFRobot GDI (General Display Interface) port simplifies connecting TFT and OLED displays to compatible ESP32 development boards using an 18-pin, 0.5 mm-pitch FPC ribbon cable.

The interface provides 3.3 V power, GND, SPI signals, display CS, RESET, D/C, backlight control, SD card CS, touch CS, I²C (SDA/SCL), interrupt, busy/TE (tearing effect), and two user-defined GPIO signals, enabling a single plug-and-play connection for display and touch peripherals.
