DF Robot 11.6" eDP Touch Display for LattePanda

The DFRobot 11" eDP Touch Display is a high-definition, full-view IPS screen designed for seamless integration with LattePanda single-board computers, including the LattePanda IOTA, LattePanda Mu, LattePanda Sigma, LattePanda 3 Delta, LattePanda 2 Alpha, and LattePanda 2 Delta. Featuring a native eDP (Embedded DisplayPort) interface, it ensures superior compatibility, faster data transmission, and more efficient performance compared to traditional HDMI displays—making it ideal for embedded and industrial applications.



With a crisp 1920×1080 Full HD resolution and vibrant IPS panel, this display delivers excellent colour accuracy and wide viewing angles for an immersive visual experience. The ultra-thin profile and ultra-narrow bezel maximise screen real estate while maintaining a lightweight and compact design. Multi-touch capability enhances user interaction, making it perfect for HMI systems, portable devices, kiosks, and control panels where intuitive input and visual clarity are essential.

Quick Spec

• Display Size: 11.6"
• Resolution: 1920 × 1080 (Full HD)
• Panel Type: IPS
• Touch Type: Multi-touch
• Interface: eDP (Display) + I2C (Touch)
• Compatibility: LattePanda IOTA, Mu, Sigma, 3 Delta, 2 Alpha, 2 Delta
• Brightness: 350 cd/m² (Max)
• Colour Gamut: 68% (Typ., CIE1931)
• Viewing Angle: Full view
• Pixel Pitch: 0.1335 × 0.1335 mm
• Display Area: 256.32 × 144.18 mm
• Backlight: LED
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Dimensions: 267 × 159 × 8.8 mm

Product Video

Resources

• Product Page
• User Manual

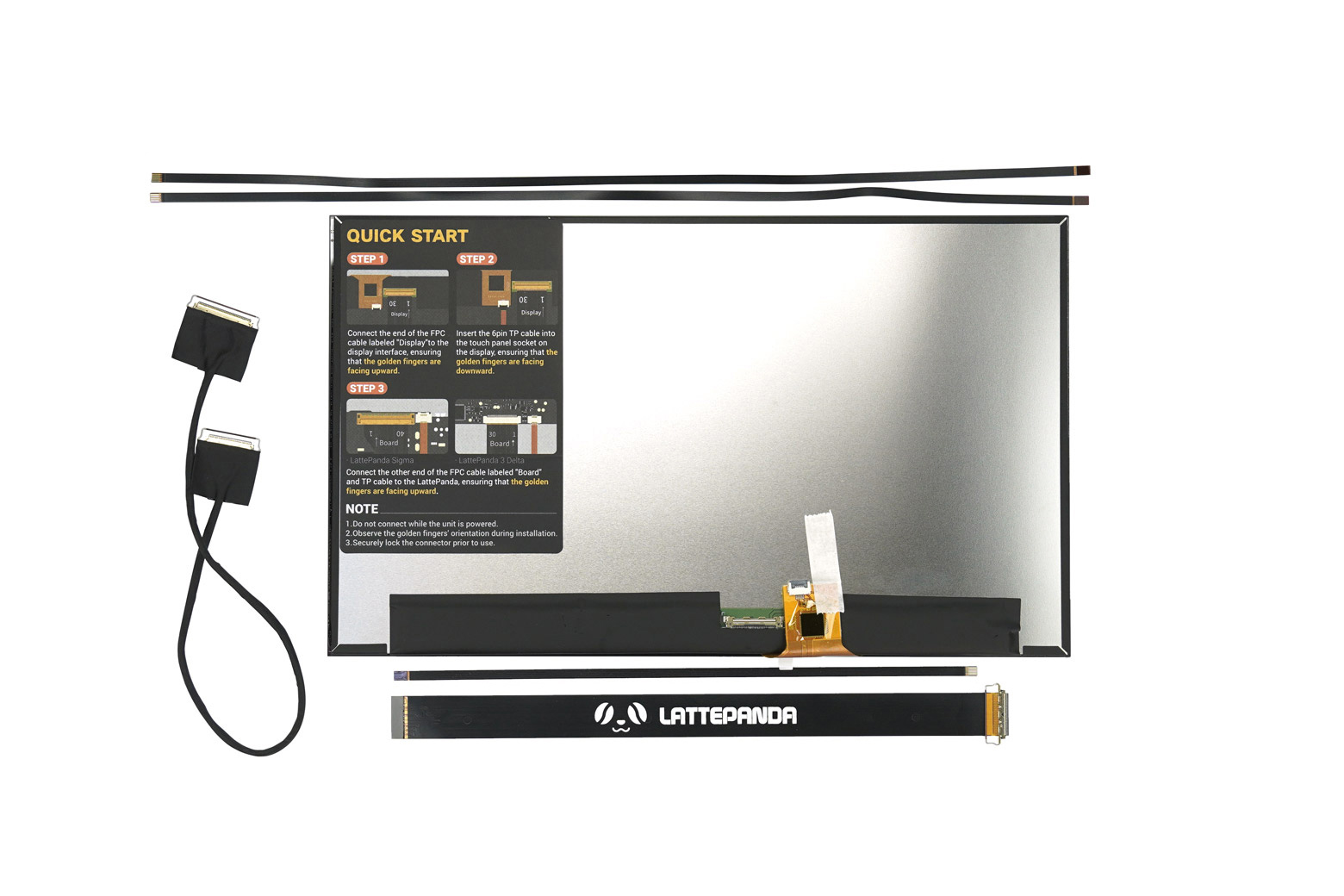

Shipping List

• 1 x DF Robot 11.6" eDP Touch Display for LattePanda

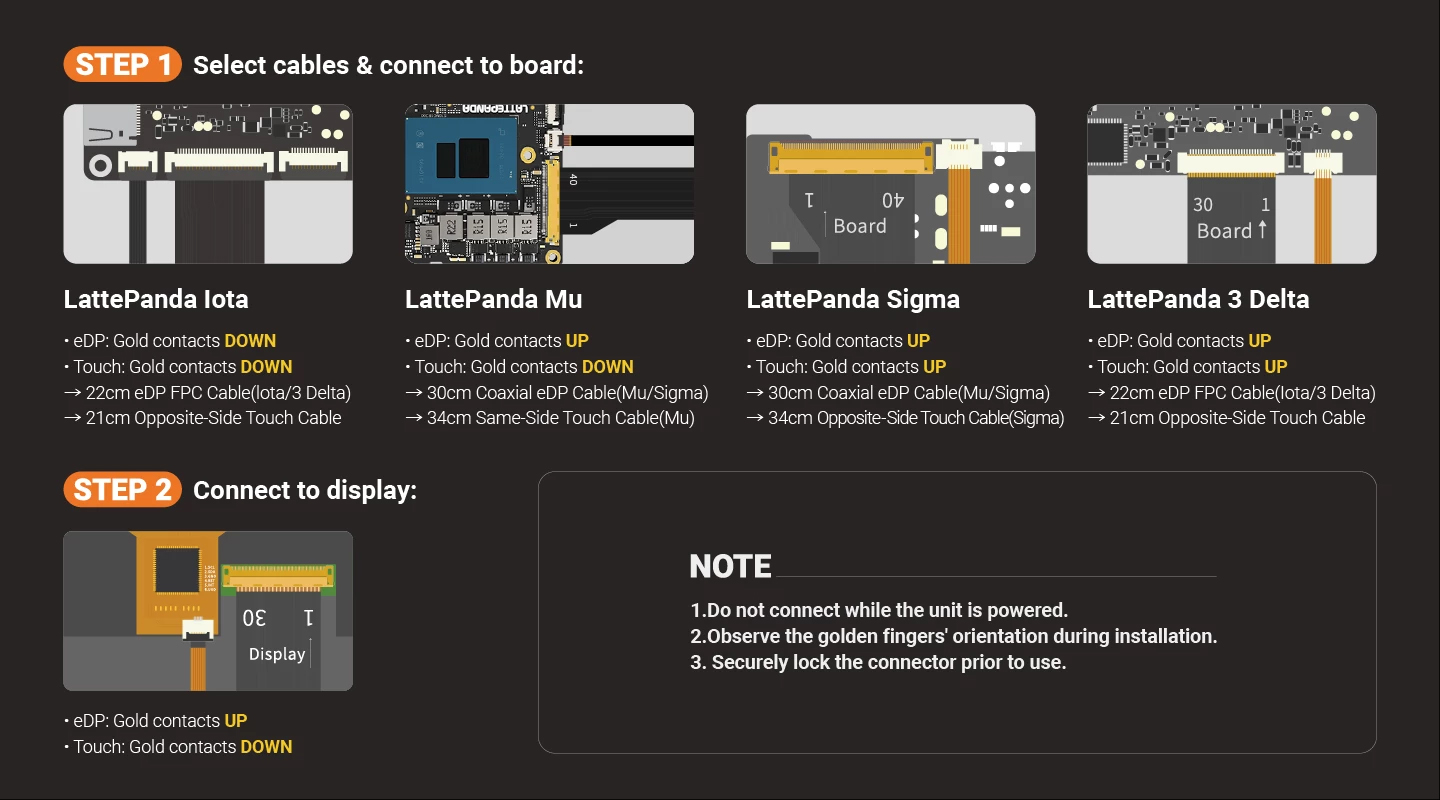

• 1 x 30cm 40P to 30P 0.5mm Coaxial EDP Screen Cable (For LattePanda Mu/ Sigma)
• 1 x 34cm Opposite-Side Touch cable (For LattePanda Sigma)
• 1 x 34cm Same-Side Touch cable (For LattePanda Mu)
• 1 x 22cm eDP FPC cable (For LattePanda IOTA/ 3 Delta/ 2 Alpha)
• 1 x 21cm Opposite-Side Touch cable (For LattePanda IOTA/ 3 Delta/ 2 Alpha)
