• Description

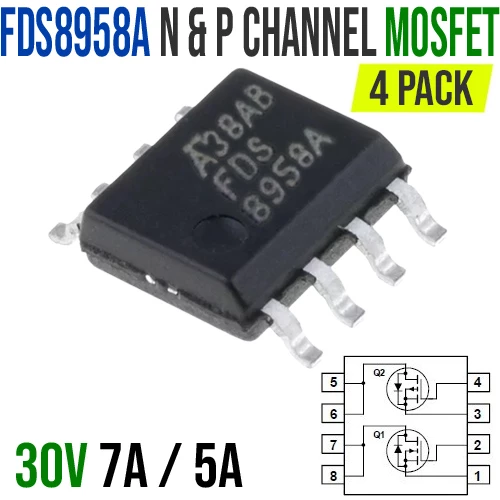

FDS8958A Dual N & P-Channel MOSFET (4 Pack)

The FDS8958A is a dual N- and P-channel power MOSFET housed in a compact SO-8 package. Designed for efficient load switching, DC-DC conversion, and motor control applications, it combines both high-speed switching and low on-resistance performance. The integrated complementary configuration (one N-channel and one P-channel device) simplifies circuit design, allowing direct use in H-bridge, synchronous buck, or power management circuits.

Quick Spec

• Type: Dual N- & P-Channel MOSFET
• Package: SO-8 (Surface Mount)
• N-Channel (Q1): 30 V / 7 A / R_DS(on) ≈ 0.028 Ω @ V_GS = 10 V
• P-Channel (Q2): –30 V / –5 A / R_DS(on) ≈ 0.052 Ω @ V_GS = –10 V
• Gate Threshold Voltage: 1–3 V
• Total Gate Charge (typ): 13 nC (N-Ch), 19 nC (P-Ch)
• Power Dissipation: 2 W (TA = 25 °C)
• Operating Temperature: –55 °C to +150 °C
• Ideal for: load switching, H-bridge drivers, DC-DC converters, and battery management systems

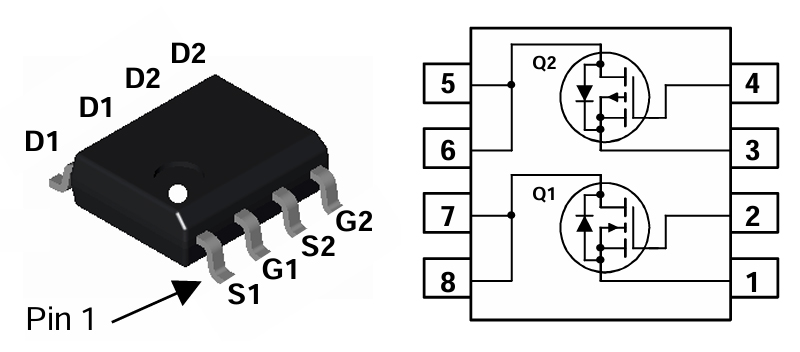

Pinout

Resources

• Datasheet

Shipping List

• 4 x FDS8958A Dual N & P-Channel MOSFET

FDS8958A Dual N & P-Channel MOSFET (4 Pack)

• Brand: Generic
• Product Code: FDS8958A
• Weight: 0.002kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	In Stock	UPPER-D01
Stellenbosch	In Stock	C0125
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R16.00 (Inc Tax: R18.40)
