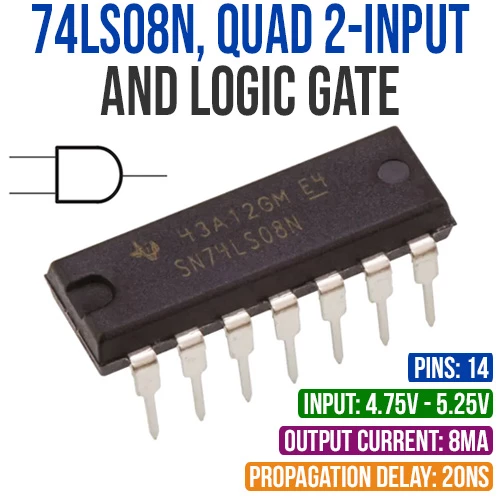

74LS08 Quad 2-Input AND Logic Gate IC
The 74LS08 is a Quad 2-Input AND Gate IC from the 74LS family, designed using low-power Schottky logic for high-speed performance with reduced power consumption. Each of its four independent gates performs a logical AND function, making it ideal for various digital circuit applications.
With a wide operating voltage range of 4.75V to 5.25V and a maximum propagation delay of 20ns, this IC is suitable for high-speed logic operations. Its PDIP-14 package ensures easy through-hole mounting, making it a reliable choice for logic-based circuits, control systems, and digital signal processing.
Quick Spec
- Logic Function: AND
- Number of Gates: 4 (Quad)
- Inputs per Gate: 2
- Package Type: PDIP-14
- Mounting Type: Through-Hole
- Operating Voltage: 4.75V - 5.25V
- Maximum Propagation Delay: 20ns @ 5V
- Maximum High-Level Output Current: -0.4mA
- Maximum Low-Level Output Current: 8mA
- Operating Temperature Range: 0°C to 70°C
- Dimensions: 19.3 x 6.35 x 4.57mm

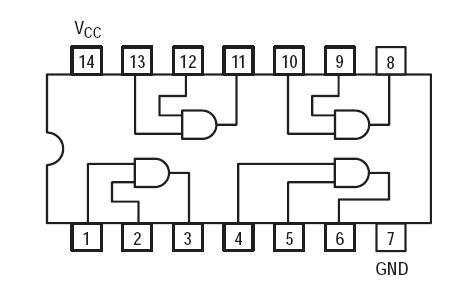

Pinout
Resources
Shipping List
- 1 x 74LS08 Quad 2-Input AND Logic Gate IC
74LS08 Quad 2-Input AND Logic Gate IC
- Brand: Generic
- Product Code: 74LS08
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | Y038 |
| Stellenbosch | In Stock | 685 |
We ship free of charge between branches to complete your order.
-
R12.00 (Inc Tax: R13.80)
