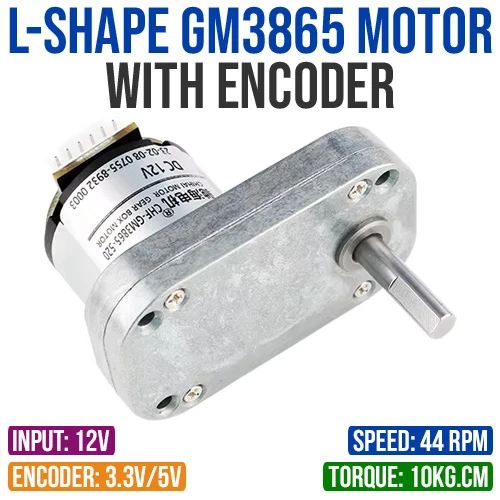

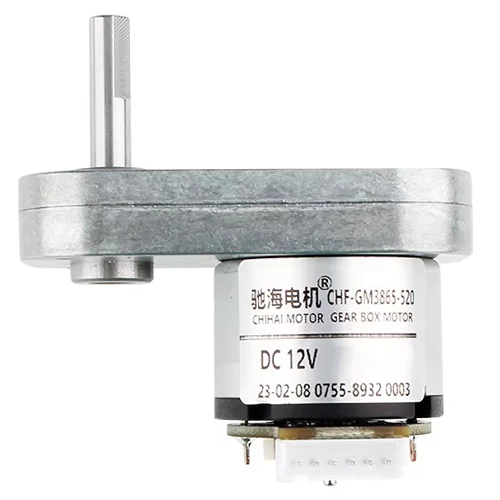

L-Shape GM3865-52 DC Motor With Encoder - 44RPM 12V
The L-Shape GM3865-52 DC Motor with Encoder is a high-torque, low-speed motor designed for precision control applications. With a 1:225 gear reduction ratio, it delivers a rated torque of 10kg.cm at 33 RPM while maintaining a low operating current. The integrated AB dual-phase incremental encoder provides real-time feedback, making it ideal for robotics, automation, and position control projects.
Equipped with a 13PPR encoder that outputs a square wave AB signal, the motor ensures accurate speed and position tracking. It supports 3.3V/5V logic levels, making it easy to interface with microcontrollers and motor drivers.
Quick Spec
- Operating Voltage: 12V DC
- Gear Reduction Ratio: 1:225
- No-Load Speed: 44 RPM
- No-Load Current: <180mA
- Rated Torque: 10kg.cm
- Rated Speed: 33 RPM
- Rated Current: <0.60A
- Stall Torque: ≤25kg.cm
- Stall Current: <3.5A
- Shaft: D-Shape (6mm)
- Brand: CHIHAI

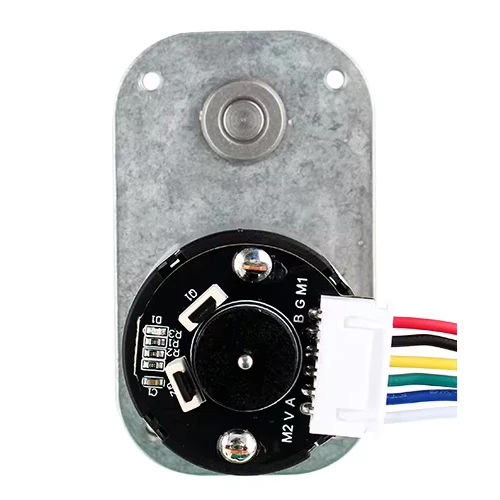

Encoder Specs:
- Type: AB dual-phase incremental encoder
- Pulse Output: 13PPR x gear ratio
- Power Supply: 3.3V/5V DC
- Output Signal: Square wave AB phase
- Magnetic Ring Poles: 26 (13 pairs)
Dimensions
Pinout
Shipping List
- 1 x L-Shape GM3865-52 DC Motor With Encoder - 44RPM 12V
- 1 x Interface Cable
L-Shape GM3865-52 DC Motor With Encoder - 44RPM 12V
- Brand: Generic
- Product Code: GM3865-520-44-12V-ENC
- Weight: 0.167kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R218.00 (Inc Tax: R250.70)
