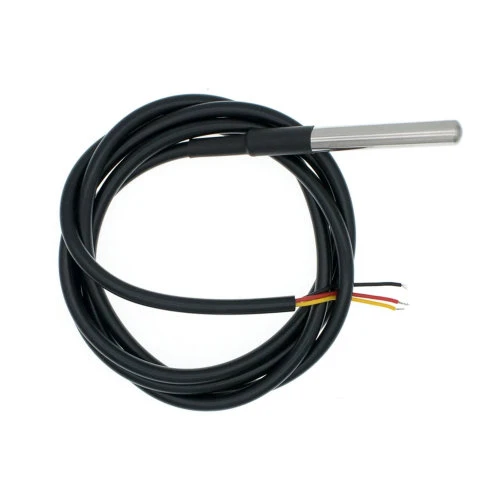

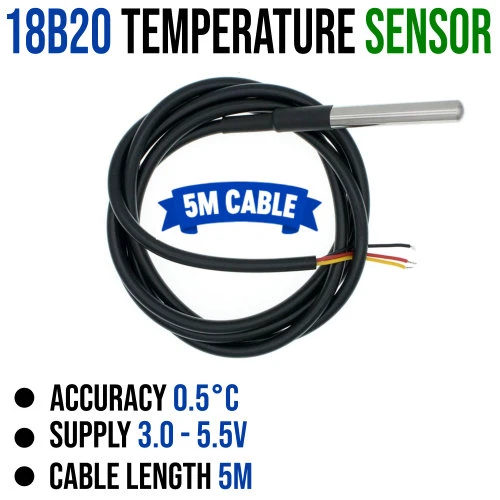

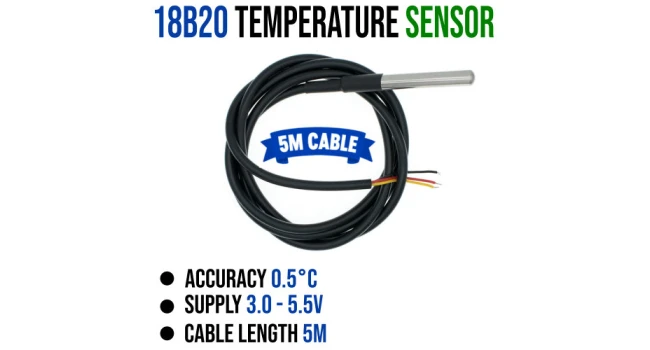

18B20 Digital Temperature Sensor - 5m cable
The 18B20 (DS18B20) is a 1-Wire Programmable Digital Temperature Sensor with a range of -55°C to +125°C with an accuracy of +/- 0.5°C. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. This probe is not watertight, we have special IP68-rated probes if required.
Quick Spec
- Chipset: 18B20
- Accuracy ±0.5°C from -10°C to +85°C
- Usable with 3.0V to 5.5V power/data
- Usable temperature range: -55 to 125°C
- Resolution: 9 to 12 bit selectable
- Interface: 1-Wire interface
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- Query time is less than 750ms
- Stainless steel tube 6mm diameter by 35mm long
- IP Rated: Not Rated
- Cable diameter: 4mm
- Length: 5M
Shipping List
- 1 x 18B20 Digital Temperature Sensor - 5m cable
18B20 Digital Temperature Sensor - 5m cable
- Brand: Generic
- Product Code: 18B20-5M
- Weight: 0.105kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | No Stock | |
| Stellenbosch | No Stock |
We ship free of charge between branches to complete your order.
-
R72.00 (Inc Tax: R82.80)
