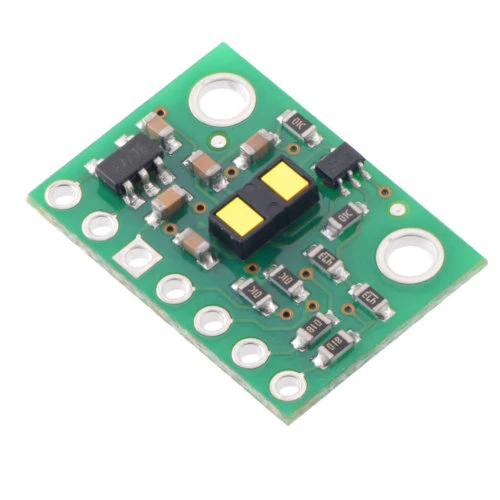

Pololu VL53L1X Time-Of-Flight Distance with Regulator, Range 4m

The VL53L1X is a compact time-of-flight LiDAR sensor using an invisible, eye-safe 940 nm Class 1 laser. It measures absolute distance from 4 cm to 4 m with 1 mm resolution. Readings and configuration use I²C, while shutdown and interrupt pins support efficient control. Performance varies with environmental conditions.

Quick Spec

• Sensor: VL53L1X ToF LiDAR
• Range: 4–400 cm
• Resolution: 1 mm
• Supply Voltage: 2.6–5.5 V
• Current: 20 mA typical
• Interface: I²C
• Maximum Sampling Rate: 50 Hz
• Laser: Eye-safe 940 nm Class 1
• Detection Array: 16×16 SPAD
• Field of View: 15°–27° programmable

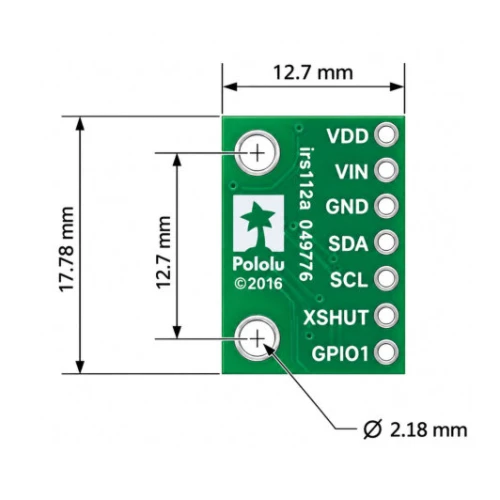

• Dimensions: 13×18×2 mm

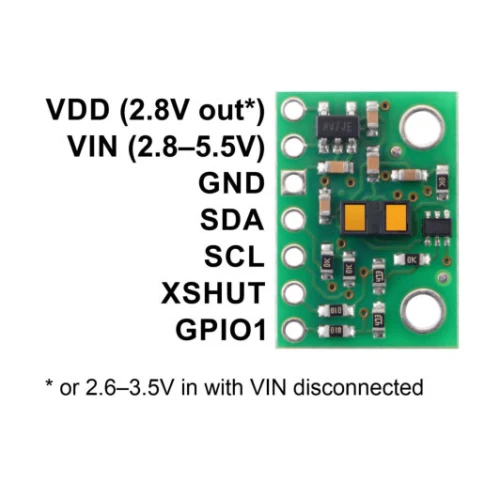

Pinout

Resources

• Product Page>
• VL53L1X Time-of-Flight Sensor Datasheet
• VL53L1X API User Manual
• Schematic
• Additional Documentation
• ST VL53L1X API implementation for Arduino

PLEASE NOTE

Shipping List

• 1 X VL53L1X Time-Of-Flight Distance + Regulator
• 1 X Header Set

Pololu VL53L1X Time of Flight Distance Sensor with Regulator, Range 4m

• Brand: Pololu Electronics
• Product Code: 3415
• Weight: 0.003kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R348.00 (Inc Tax: R400.20)
