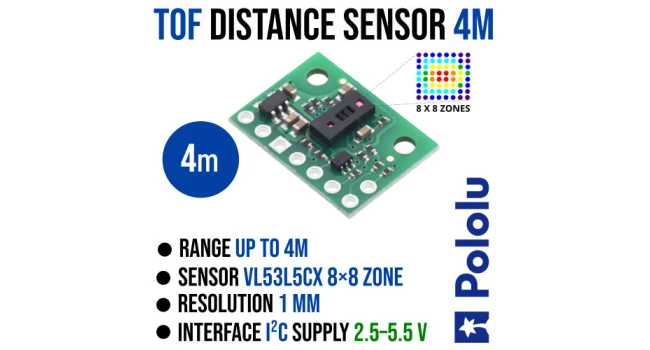

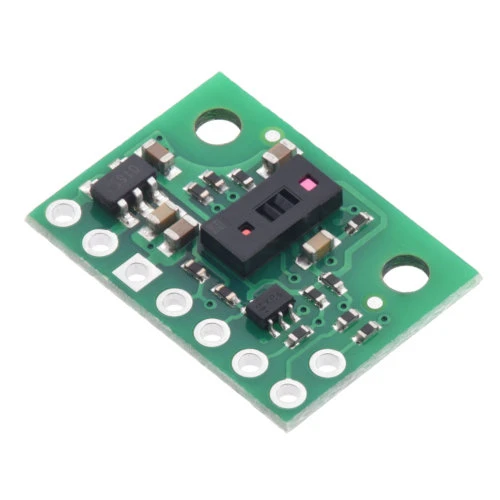

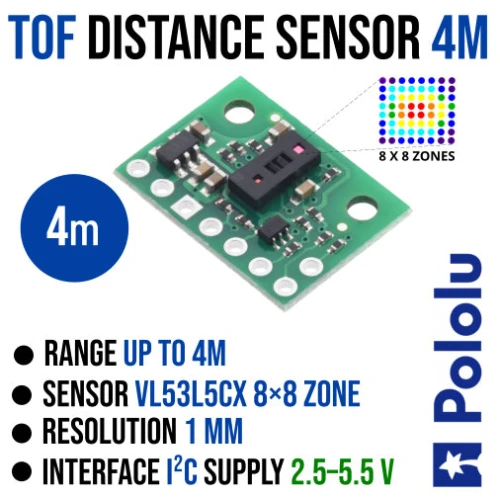

Pololu VL53L5CX Time of Flight 8x8 Zone Distance Sensor, Range 4m

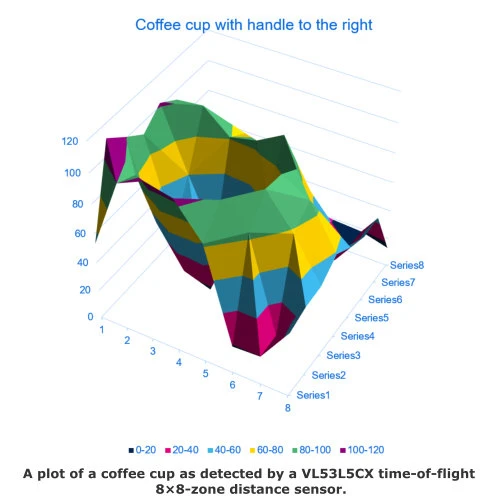

This sensor is a carrier/breakout board for ST’s VL53L5CX laser-ranging sensor, which offers fast and accurate ranging up to 4 m through a digital I2C interface. It can measure absolute distances to multiple targets simultaneously across multiple zones, providing enough data for a depth map with up to 8×8 resolution. The board includes a 3.3V linear regulator and level-shifters that allow it to work over an input voltage range of 2.8V to 5.5V, and the 2.54mm pin spacing makes it easy to use with standard solderless breadboards and 2.54mm perfboards.
Quick Spec
- Resolution: 1mm
- Maximum Range: 400cm
- Minimum Range: 2cm
- Interface: I2C
- Operating Voltage: 2.8 ~ 5.5V
- Supply Current: 100mA (150mA Peak)
Pinout
Resources
Please Note
Shipping List
- 1 x Time of Flight 8x8 Zone Distance Sensor
Pololu VL53L5CX Time of Flight 8x8 Zone Distance Sensor, Range 4m
- Brand: Pololu Electronics
- Product Code: 3417
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | D78 |
| Stellenbosch | In Stock | U67 |
We ship free of charge between branches to complete your order.
-
R298.00 (Inc Tax: R342.70)
