Pololu Time-of-Flight Sensor + Regulator

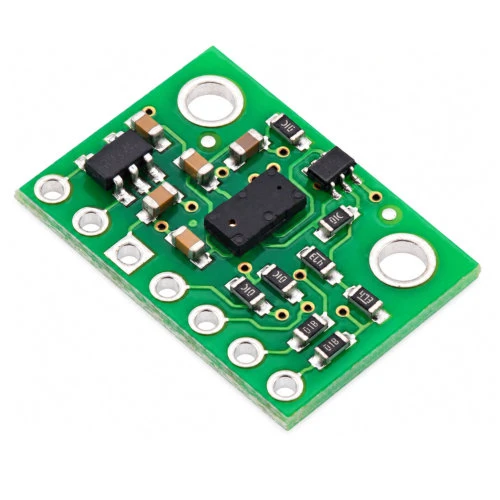

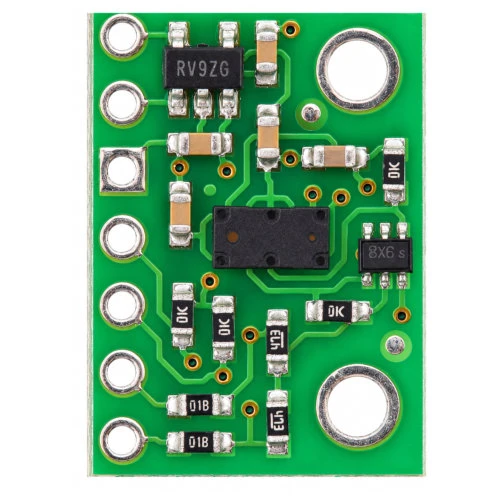

This sensor is a carrier/breakout board for ST’s VL53L3CX laser-ranging sensor, which offers fast and accurate ranging up to 5 m. It uses the time of flight (ToF) of invisible, eye-safe laser pulses to measure absolute distances to multiple targets simultaneously, independent of ambient lighting conditions and target characteristics like colour, shape, and texture (though these things will affect the maximum range). Distance measurements can be read through a digital I²C interface. The board includes a 2.8 V linear regulator and level-shifters that allow it to work over an input voltage range of 2.6 V to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 2.54mm perfboards.

3416-002

Quick Spec

  • Resolution: 1mm
  • Maximum Range: 300cm
  • Minimum Range: 1cm
  • Interface: I2C
  • Minimum Operating Voltage: 2.6V
  • Maximum Operating Voltage: 5.5V
  • Supply Current: 15 mA
  • Dimensions: 12.7 x 17.8 x 2.2mm
  • Net Weight: 3g

Dimensions

3415_001

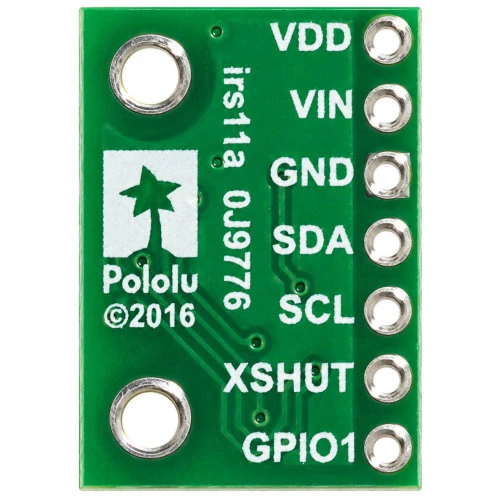

Pinout

3416-001

Schematic

3416-sch

PLEASE NOTE

3416-003

Resources

Shipping List

  • 1 x Pololu Time-of-Flight Sensor + Regulator
  • 1 x Header Set


Pololu Time-of-Flight Sensor + Regulator

  • Brand: Pololu Electronics
  • Product Code: 3416
  • Weight: 0.003kg
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch Limited Stock Z8063

    We ship free of charge between branches to complete your order.

  • R198.00 (Inc Tax: R227.70)
