DFRobot Gravity LoRaWAN Node Module – 4km 868MHz (EU868)

The DFRobot Gravity LoRaWAN Node Module (EU868) is a compact, low-power wireless communication module designed for long-range outdoor IoT applications. Built around the Semtech SX1262 RF chip and LoRa modulation technology, it supports both LoRa point-to-point (P2P) communication and full LoRaWAN networking, offering flexible deployment options for sensor nodes and remote data acquisition systems.



Operating in the EU868 frequency band, the module delivers reliable transmission distances of up to 1.2km in urban environments and up to 4km in open areas while maintaining ultra-low power consumption. With an integrated LoRa/LoRaWAN protocol stack, standard I2C and UART interfaces, and compatibility with popular platforms such as Arduino, ESP32, and micro:bit, it enables rapid, plug-and-play integration without complex protocol development.

Quick Spec

• RF Chip: Semtech SX1262
• Operating Frequency: 868MHz (EU868 band)
• Communication Modes: LoRa P2P, LoRaWAN (Class A & Class C)
• Activation Methods: OTAA, ABP
• Modulation: LoRa
• Bandwidth: 125kHz
• Spreading Factor: SF7–SF12
• Max Transmit Power: +16dBm
• Receiver Sensitivity: -137dBm (SF12 / BW125kHz)
• Communication Range: Up to 1.2km (urban), up to 4km (open area)
• Interfaces: I2C, UART
• Supply Voltage: 3.3V – 5V DC
• Logic Level Compatibility: 3.3V / 5V
• Antenna: Onboard PCB antenna
• Power & Communication Connector: PH2.0-4P
• Mounting Hole Diameter: 3.0mm
• Mounting Hole Spacing: 35mm
• Dimensions: 42 × 62mm

Dimensions

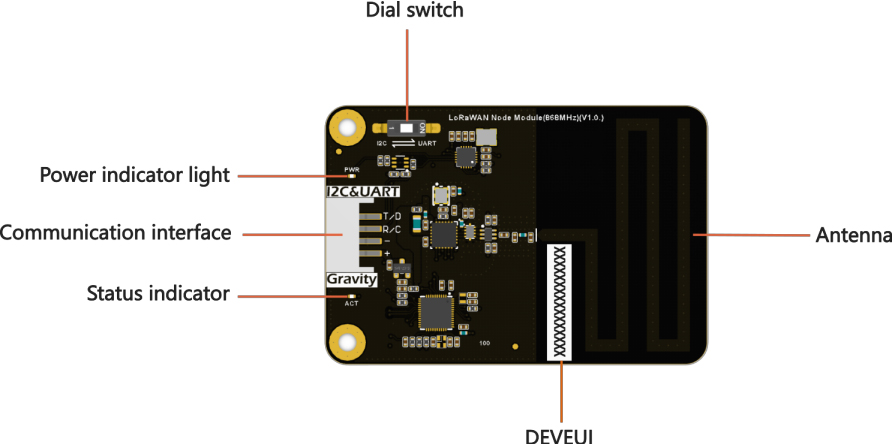

Board Layout

Resources

• Product Page
• Product Wiki

Shipping List

• 1 x DFRobot Gravity LoRaWAN Node Module – 4km 868MHz (EU868)
• 1 x PH2.0-4P Interface Cable

DFRobot Gravity LoRaWAN Node Module – 4km 868MHz (EU868)

• Brand: DF Robot
• Product Code: DFR1115-868
• Weight: 0.022kg
• Product Status : Active
