• Description

DF Robot ESP32-S3 LoRaWAN Development Board with Display

The DFRobot ESP32-S3 LoRaWAN Development Board is a professional-grade solution designed for long-range wireless communication and rapid prototyping. Built around the powerful ESP32-S3 and SX1262 LoRa transceiver, it supports LoRa, LoRaWAN, and Meshtastic protocols, making it ideal for IoT development, smart home expansion, and decentralized communication networks. Arduino and ESPHome (YAML) support lower the entry barrier, allowing developers to focus on application logic rather than protocol complexity.

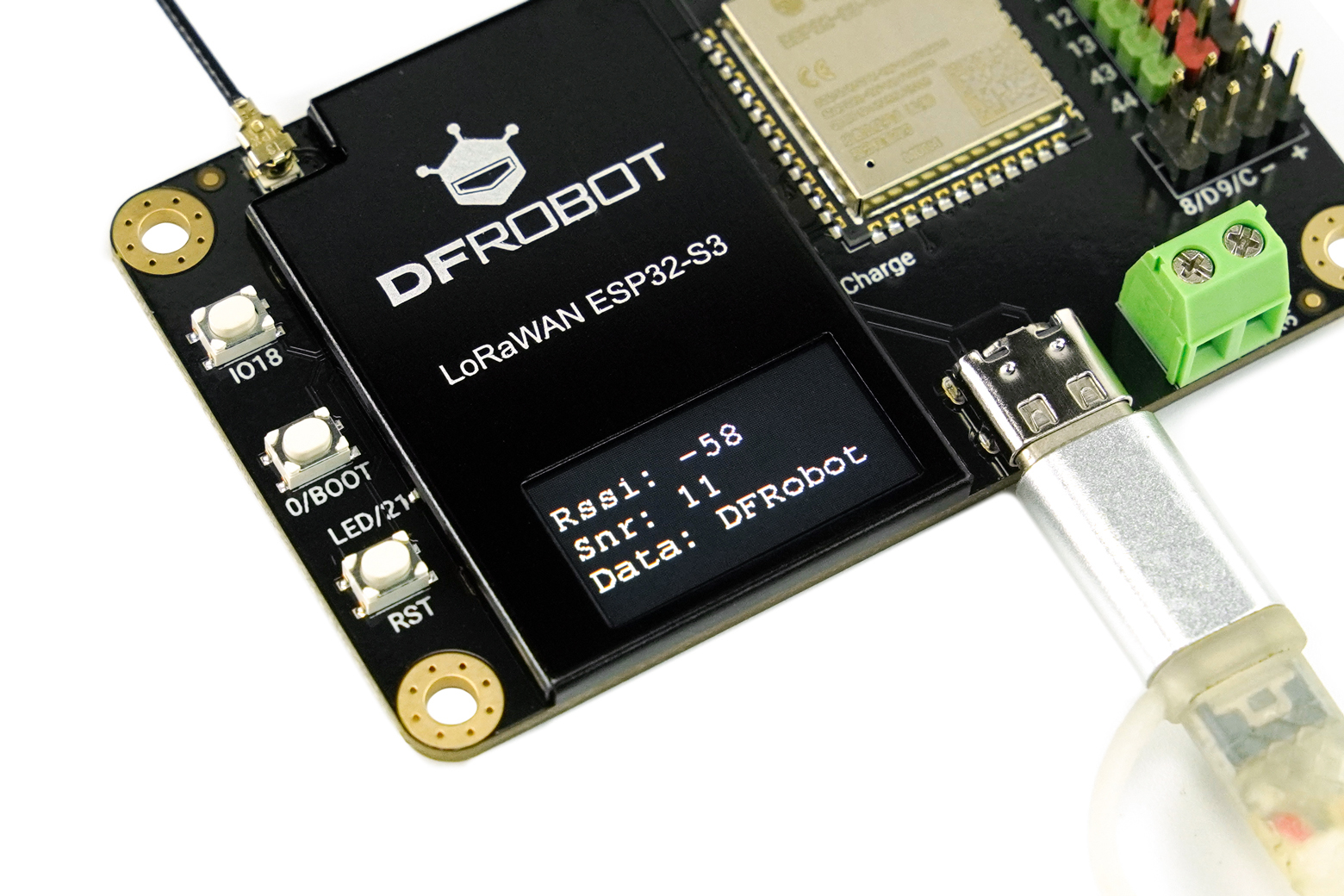

For enhanced usability, the board integrates a 0.96" LCD display and physical buttons for real-time status monitoring and interface switching without external tools. Multiple power options, including a lithium battery interface with onboard charging, enable portable and outdoor deployments. With easy-access I2C and IO interfaces, sensors can be connected quickly without soldering, significantly improving testing and deployment efficiency.

Quick Spec

• MCU: ESP32-S3 dual-core Xtensa® LX7 @ 240MHz
• LoRa Chip: SX1262
• Supported Protocols: LoRa, LoRaWAN, Meshtastic
• Frequency Band: 850–930MHz
• TX Power: 16dBm (EU868), 22dBm (US915)
• Display: 0.96" LCD, 160×80 resolution
• Wireless: WiFi, Bluetooth 5
• Flash: 4MB
• Power: 3.3V operation, 5V USB Type-C input
• Battery Support: Li-ion interface with onboard charging
• Operating Temperature: -10°C to +60°C
• Board Size: 73 × 45mm

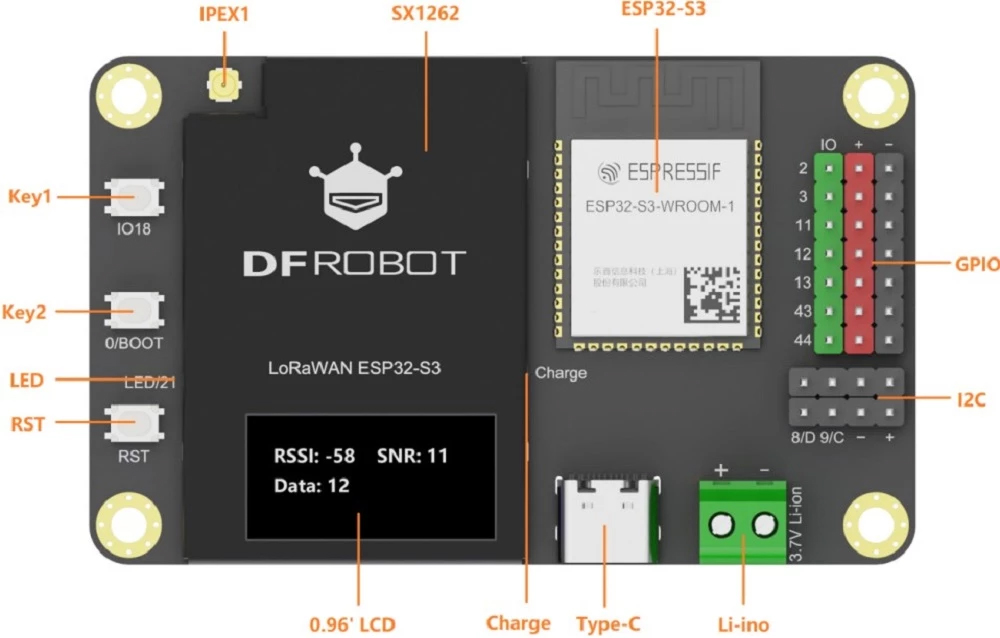

Board Layout

Resources

• Product Page
• Getting Started with LoRaWAN
• LoRa VS LoRaWAN
• LoRaWAN Gateway Software

Shipping List

• 1 x DF Robot ESP32-S3 LoRaWAN Development Board with Display
• 1 x Antenna

DF Robot ESP32-S3 LoRaWAN Development Board with Display

• Brand: DF Robot
• Product Code: DFR1195
• Weight: 0.03kg
• Product Status : Active

Stock

Warehouse	Stock Status	Location
Centurion	No Stock
Stellenbosch	No Stock
Bulk Location	No Stock

We ship free of charge between branches to complete your order.

• R372.00 (Inc Tax: R427.80)
