DF Robot 3-Phase 4015 Brushless DC Motor with AS5600 Encoder

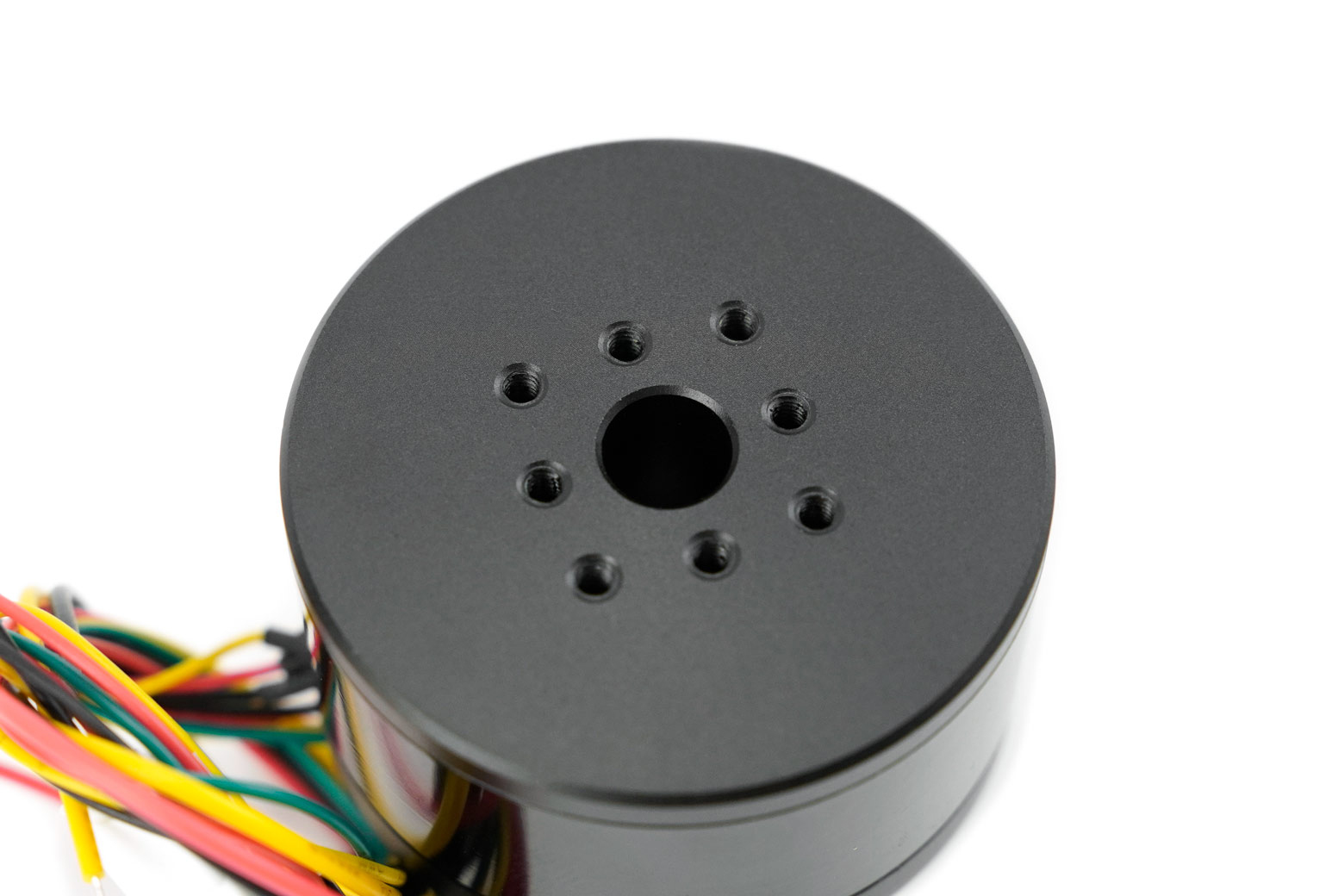

The DFRobot 4015 3-Phase Brushless DC Motor is a high-performance integrated motion solution combining a powerful outer-rotor BLDC motor with a factory-installed AS5600 12-bit magnetic encoder. Designed for Field-Oriented Control (FOC) applications, this motor delivers smooth, precise, and low-noise operation with excellent torque stability. At 24V operation, it provides up to 1100RPM and 0.35Nm torque, making it ideal for robotic joints, gimbal systems, and precision servo mechanisms.

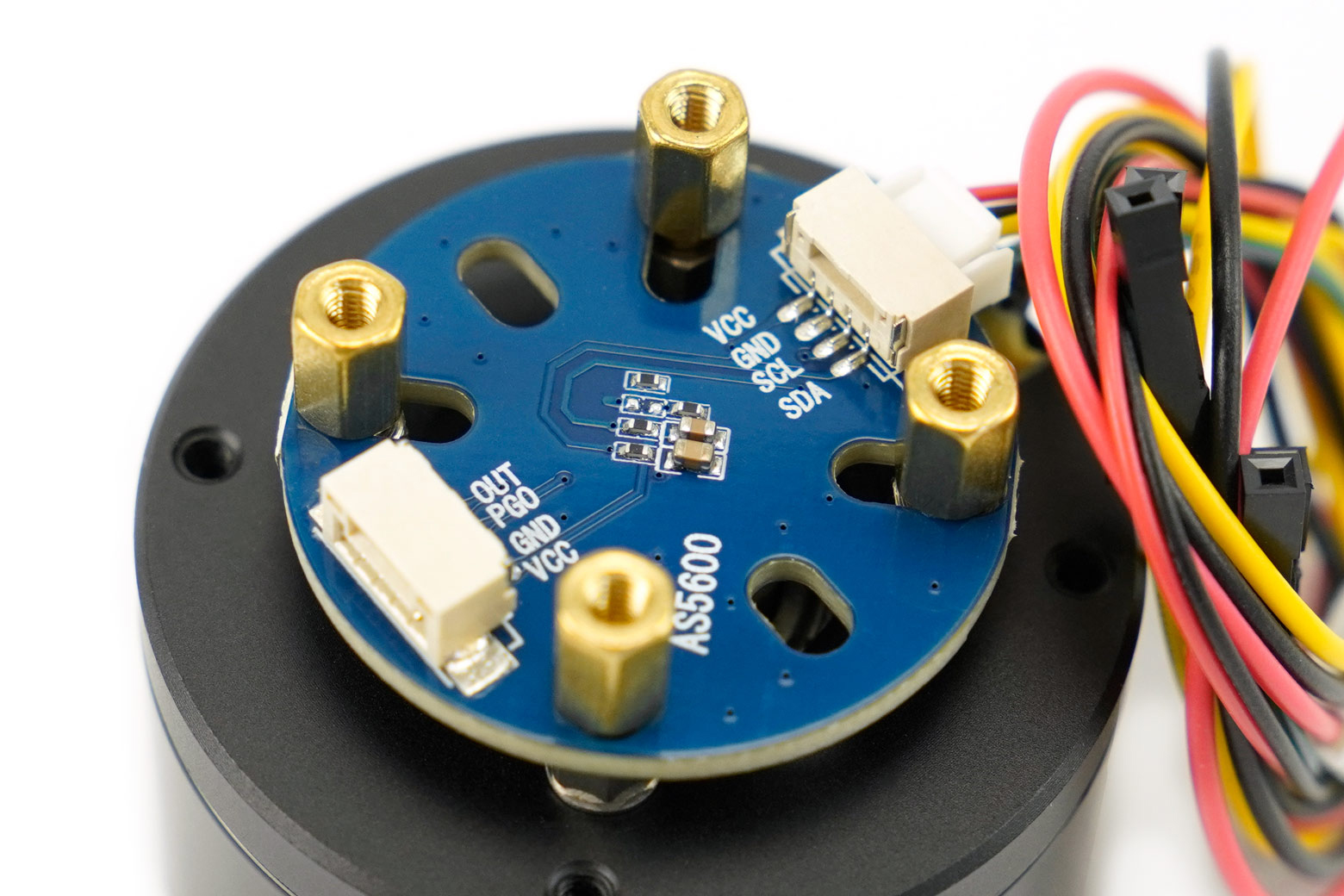

Optimized specifically for closed-loop FOC control, the integrated AS5600 encoder delivers 0.087° angular resolution for accurate position, speed, and torque feedback. The hollow-shaft design (7.5mm aperture) simplifies cable routing in complex assemblies, while the CNC-machined aluminum housing ensures durability and efficient heat dissipation. Fully compatible with the SimpleFOC open-source library, this motor allows rapid integration with Arduino, ESP32, and Raspberry Pi platforms for advanced motor control development.

Quick Spec

Motor Electrical

• Motor Type: 3-Phase Brushless DC (Outer Rotor)
• Operating Voltage: 12 – 36V DC
• Rated Voltage: 12V / 24V
• Rated Speed: 610RPM @12V, 1100RPM @24V
• Rated Torque: 0.15Nm @12V, 0.35Nm @24V
• Rated Current: 0.65A @12V, 1.4A @24V
• Max Current: 4A
• Rated Power: 8W @12V, 33W @24V
• KV Rating: 61KV
• Phase Inductance: 2.6mH
• Pole Pairs: 11 (24N22P configuration)

Mechanical

• Stator Diameter: 40mm
• Stator Height: 15mm
• Motor Dimensions: 45 × 26mm
• Shaft Diameter: 10mm
• Hollow Shaft Aperture: 7.5mm
• Housing: Aluminum alloy
• Operating Temperature: 0–60°C

Encoder

• Encoder Chip: AS5600
• Resolution: 12-bit
• Angular Accuracy: 0.087°
• Operating Voltage: 3.3V
• Output Interfaces: I2C (default), PWM, Analog
• Connector: GH1.25-4Pin

Resources

• Product Page

Shipping List

• 1 x DF Robot 3-Phase 4015 Brushless DC Motor with AS5600 Encoder
• 1 x MX1.25-4P to DuPont cable
• 1 x 3-pin motor cable
