DF Robot SimpleFOC Mini Brushless Motor Driver Board
The DFRobot SimpleFOC Mini is a compact, high-performance driver board designed for precise control of Brushless DC (BLDC) motors. Powered by advanced Field-Oriented Control (FOC) technology, it enables real-time closed-loop control of motor position, speed, and torque with exceptional smoothness and efficiency. Despite its ultra-compact 26 × 21.5mm footprint, the board supports a wide 8–30V input range and delivers up to 2.5A per phase, making it ideal for demanding motion-control applications.
Unlike traditional ESCs, the FOC algorithm ensures stable low-speed operation, ultra-smooth commutation, and significantly reduced noise and vibration through sinusoidal drive control. The board supports torque, speed, and position control modes, enabling high-precision robotics, gimbal systems, haptics, and automation projects. With native 3.3V and 5V logic compatibility and full integration with the SimpleFOC open-source library, it provides seamless support for Arduino, ESP32, and Raspberry Pi development environments.
Quick Spec
- Motor Type: Brushless DC (BLDC)
- Control Method: Field-Oriented Control (FOC)
- Input Voltage: 8 – 30V DC
- Max Output Current: 2.5A per phase
- Control Modes: Torque, Speed, Position (Closed-loop)
- Logic Compatibility: 3.3V / 5V
- Commutation: Sinusoidal drive
- Features: Regenerative braking, reverse polarity protection
- Dimensions: 26 × 21.5mm
- Software Support: SimpleFOC open-source library (Arduino, ESP32, Raspberry Pi)
Dimensions

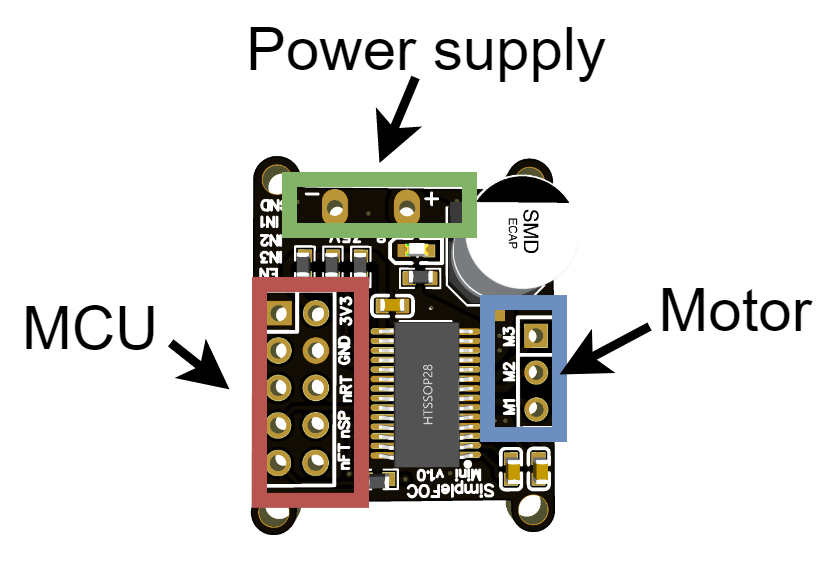

Board Layout

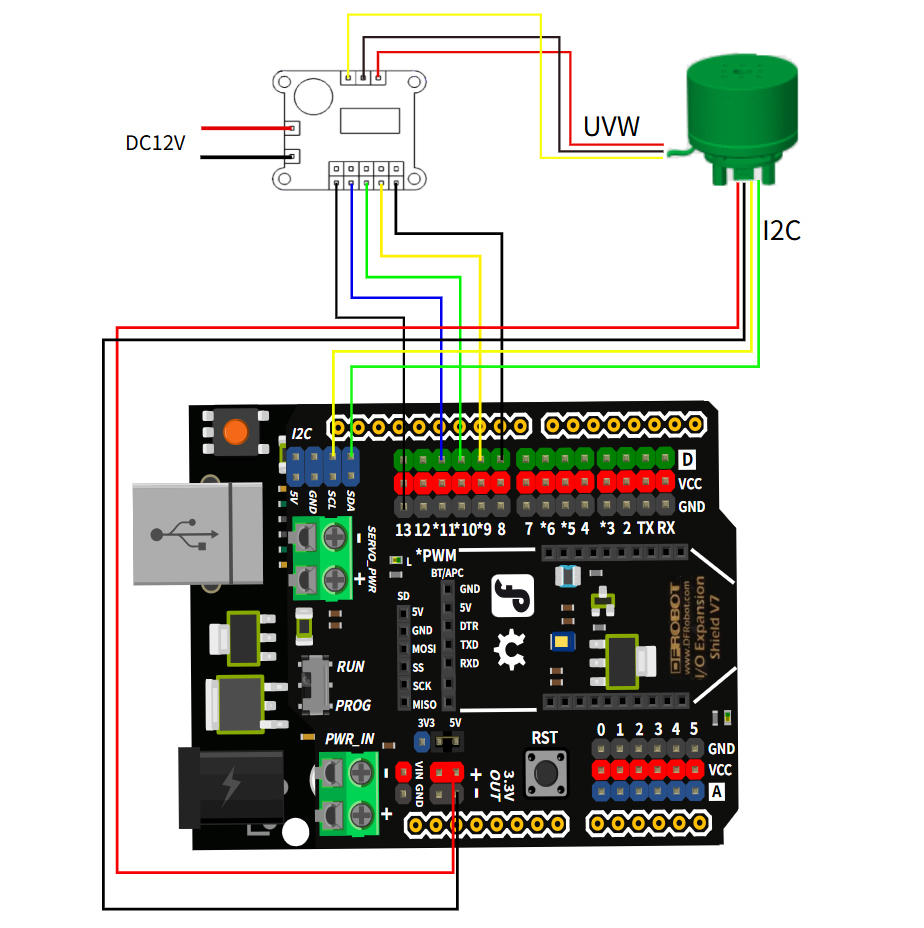

Wiring Diagram
Resources
Shipping List
- 1 x DF Robot SimpleFOC Mini Brushless Motor Driver Board
DF Robot SimpleFOC Mini Brushless Motor Driver Board
- Brand: DF Robot
- Product Code: DRI0058
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | GG325 |
| Stellenbosch | In Stock | B0160 |
We ship free of charge between branches to complete your order.
-
R120.00 (Inc Tax: R138.00)
