TMCON Intelligent PID Temperature Controller

The TMCON Intelligent PID Temperature Controller is a high-end, DIN48×48mm controller designed for precise temperature regulation across various industrial applications. Featuring a large, high-contrast LCD display with a white PV readout, it ensures excellent visibility from all angles and long-distance readability. The front panel is highly durable, with waterproof buttons that are scratch-resistant and wear-resistant, providing a smooth and clear operational feel.



With universal input compatibility, it supports thermocouples, RTDs, linear voltage/current, and infrared thermometer signals. Advanced "FUZZY+PID" AI control ensures accurate temperature management without overshoot, along with auto-tuning (AT) and self-adaptation functions. The controller offers up to three alarm outputs, an LBA control circuit disconnection alarm, and supports RS485/RS232C communication with MODBUS RTU protocol. A robust, high-efficiency switching power supply allows operation on a universal voltage range of AC100-240V or AC/DC12-24V.

Quick Spec

• Display: High-contrast LCD with white PV readout
• Input Types: Thermocouples (K, E, J, N), RTDs (PT100), voltage/current, resistance, infrared
• Accuracy: ±0.25% FS with digital correction and self-calibration
• Control Mode: FUZZY+PID with auto-tuning (AT) and self-adaptation
• Response Time: 80ms (digital filter off), ≤0.5 sec display response
• Outputs: Relay (3A/250VAC, 5A/30VDC), SSR (12VDC/50mA), Triac (1A/240VAC)
• Alarm Outputs: Up to 3 alarms with LBA control circuit disconnection detection
• Communication: RS485/RS232C with MODBUS RTU
• Power Supply: AC100-240V (-15%, +10%), AC/DC12-24V (-15%, +10%)
• EMC Compliance: IEC61000-4-4 (±4KV/5KHz), IEC61000-4-5 (4KV)
• Operating Conditions: 0~60°C, ≤90% RH

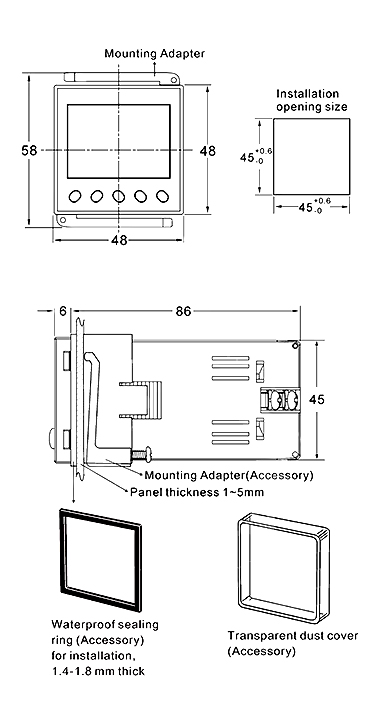

Dimensions

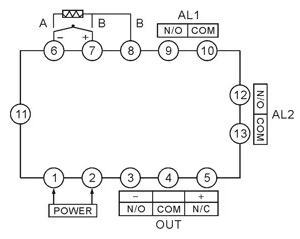

Wiring Diagram

Shipping List

• 1 x TMCON Intelligent PID Temperature Controller
• 1 x User Manual
