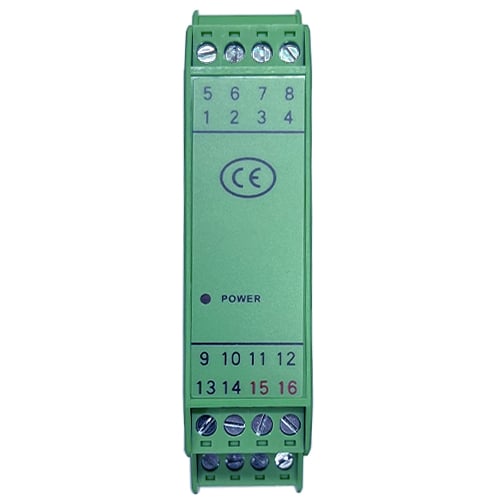

Signal Isolator 24V, In 0-5V, Out 0-5V

This Signal Isolator provides an isolated power supply to the two-wire and three-wire field transmitter and detects the current signal in a circuit. It transmits the input current or voltage signal to the isolated current or voltage signal in one circuit or two isolated circuits, and the input, output, and power supply are galvanically isolated from each other. The Signal isolator also breaks the direct electrical galvanic path between two or more loop points. The module protects against dangerous measured-variable voltages and increase protection from surges and spikes. It can be used in conjunction with modular instrumentation and DCS, PLC, and other systems, to provide signal isolation, signal conversion, signal distribution, signal processing, and other functions to the field instrument. Thus, it improves the immunity of the automatic control system in the industrial production process and guarantees the stability and reliability of the system.
This model is a single channel (1 in 1 Out) unit, which requires a 24V supply voltage and is designed to be Din Rail mounted.

Quick Spec

• Model: HDGPA-155D
• Power: 24V DC
• Transmission Accuracy: 0.1% FS
• Operating Temperature: +20 ~ +55℃
• Temperature Drift: 0.005%F.S./℃ (-20 ~ +55℃)
• Response Time: ≤ 0.5 ms (0-90%)
• Dielectric Strength: 3000V AC/1min (input, output, power supply between)
• Input Resistance: ≤50Ω
• Output Load Capacity
• DC Current: ≤500Ω (Output current signal)
• DC Voltage: ≥10KΩ (output a voltage signal)
• Insulation Resistance: ≥1000MΩ (Input/Output/Power)
• Dielectric Strength: VAC (In/Out/Power , 1mA Leakage Current, 1 minute Test Time)
• Signal Input: 0.00V - 5.00V
• Signal Output: 0.00V - 5.00V
• Dimensions: 99 x 115 x 22.5mm

Resources

• Product Page
• Datasheet

Shipping List

• 1 x Signal Isolator 24V, In 0-5V, Out 0-5V
