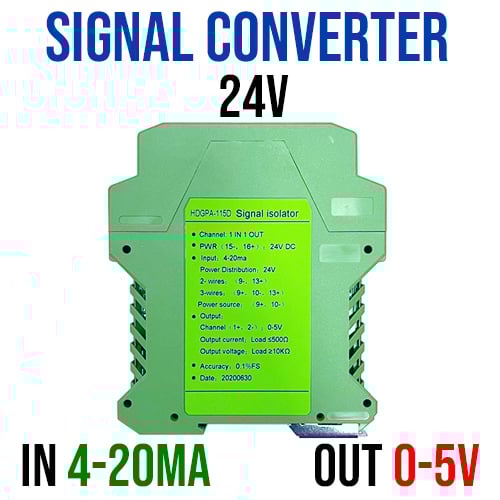

Signal Converter Isolator 24V, In 4-20mA, Out 0-5V

This current to voltage isolator module can linearly convert 4~20mA current signals into 0~5V voltage signals. Industrial sensors or devices usually have the current signal output of 4~20 mA. With this current-to-voltage module, your main control board can easily attain the current signals input from industrial sensors or devices.

Quick Spec

  • Model: HDGPA-115D
  • Power: 24V DC
  • Transmission Accuracy: 0.1% FS
  • Operating Temperature: +20 ~ +55℃
  • Temperature Drift: 0.005%F.S./℃ (-20 ~ +55℃)
  • Ripple: <1mV
  • Frequency Range: 0 ~ 300Hz
  • Input Resistance
    • Current: ≤60Ω; (0-10mA - ≥2MΩ
    • Voltage (0-5V): ≥1MKΩ
  • Output Load Capacity
    • DC Current
      • 0 ~ 10mA: ≤700Ω
      • 4 ~ 20mA: ≤500Ω
    • DC Voltage
      • 0 (1) ~ 5V: ≥1MKΩ
      • 0 ~ 10V: ≥2MKΩ
  • Dimensions: 99 x 115 x 22.5mm

Resources

Shipping List

  • 1 x Signal Converter 24V, In 4-20mA, Out 0-5V


Signal Converter Isolator 24V, In 4-20mA, Out 0-5V

  • Brand: Generic
  • Product Code: HDGPA-115D
  • Weight: 0.135kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock AA245
    Stellenbosch In Stock Y0081
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R625.00 (Inc Tax: R718.75)
