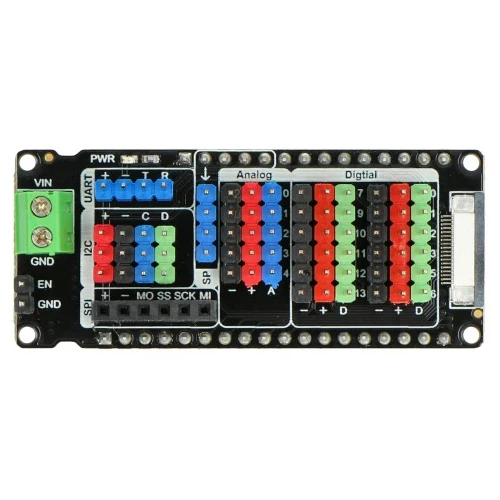

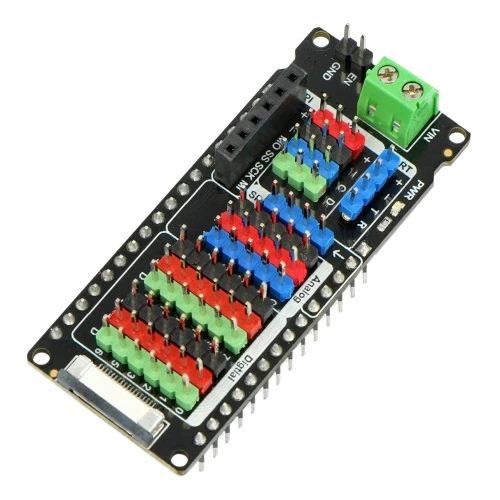

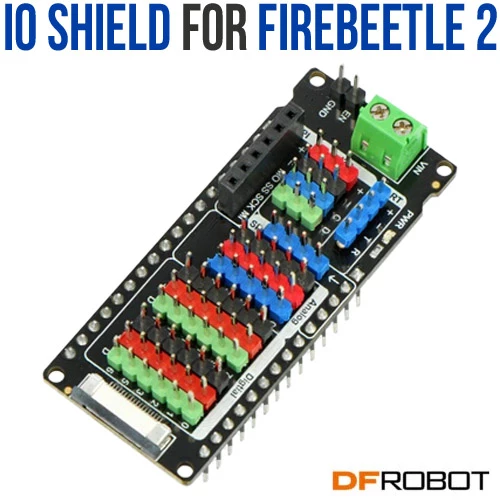

DF Robot IO Shield for FireBeetle 2
The DF Robot IO Shield for FireBeetle 2 is an expansion shield specifically crafted for the FireBeetle 2 series (M0, ESP32-E), providing a range of convenient connection options with no soldering needed. This shield includes digital, analog, I2C, UART, and SPI ports, making it easy to connect DFRobot Gravity sensors and modules directly to the FireBeetle 2. Additionally, it features a 3.3~5.5V PH2.0 power input socket for external power sources, along with an EN pin to control power flow to the mainboard.
This IO shield also includes a GDI interface for linking to DFRobot GDI series displays, enhancing the versatility of FireBeetle 2 for portable and display-connected projects. Note that this shield is designed solely for FireBeetle 2 series controllers and is incompatible with the original FireBeetle series.
Quick Spec
- Digital IO: 12 (GP0-3, GP5-7, GP9-13)
- Analog IO: 5 (A0-A4)
- UART Ports: 1
- I2C Ports: 3 (Parallel)
- SPI Ports: 1
- PH2.0 Power Port: 3.3V~5.5V
- Screen Interface: GDI
- Dimensions: 60 x 25.4mm

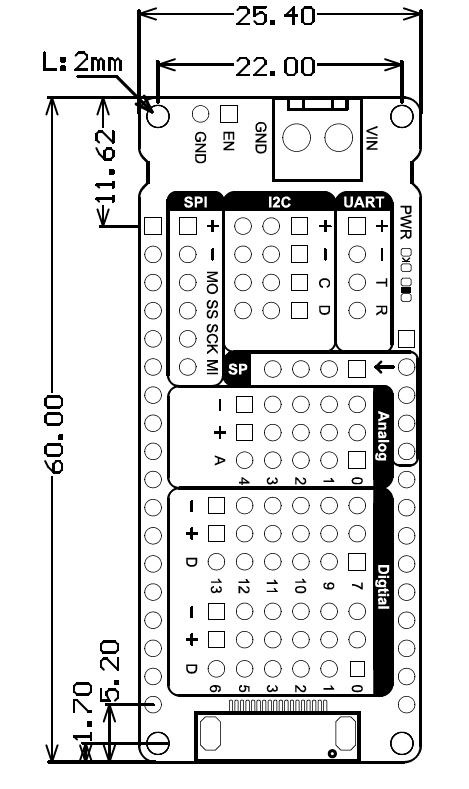

Dimensions
Resources
Compatible Boards
Shipping List
- 1 x DF Robot IO Shield for FireBeetle 2
DF Robot IO Shield for FireBeetle 2
- Brand: DF Robot
- Product Code: DFR0762
- Weight: 0.022kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | DD016 |
| Stellenbosch | In Stock | A0023 |
We ship free of charge between branches to complete your order.
-
R102.00 (Inc Tax: R117.30)
