DF Robot Flexible RGB LCD Backlight Module

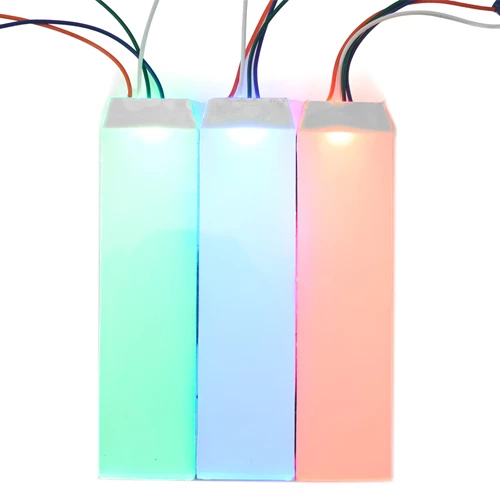

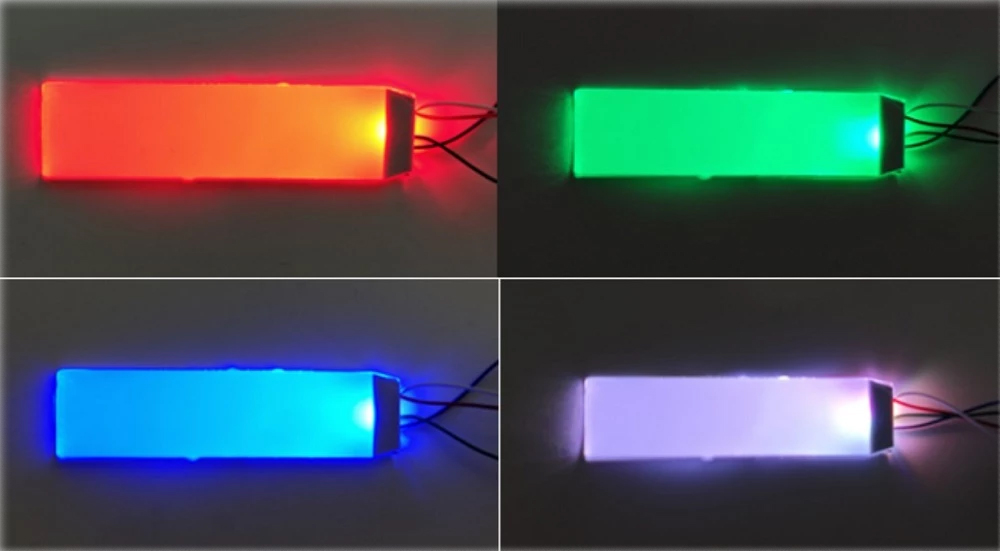

The DFRobot Flexible RGB LCD Backlight Module is a thin, bendable light-emitting panel designed for custom illumination and embedded display projects. Utilizing a standard RGB color model with three independent channels (Red, Green, and Blue), it can generate up to 16 million color combinations for dynamic lighting effects, status indication, or LCD backlighting. Built with a common anode configuration, the panel delivers bright, evenly diffused illumination with 70% uniformity, ensuring clean and professional visual output.

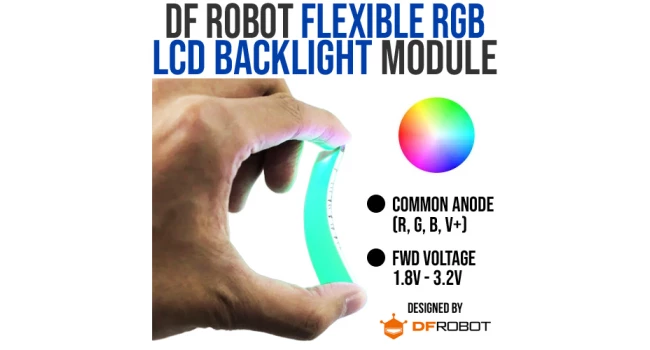

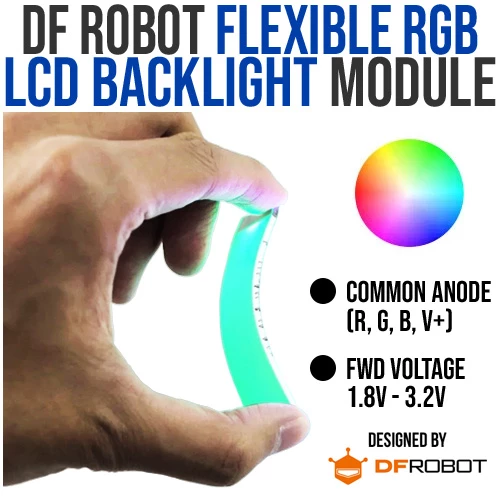

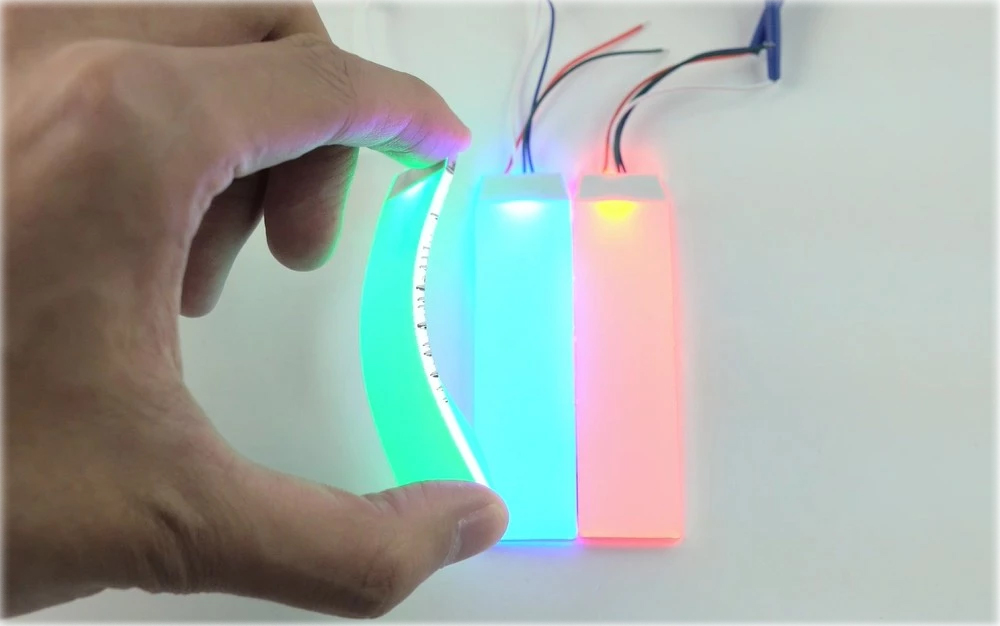

Its flexible structure allows the panel to conform to curved surfaces and fit into non-standard enclosures, making it ideal for wearable technology, custom dashboards, artistic lighting installations, and advanced HMI panels. With precise forward voltage characteristics and a wide operating temperature range, this module provides reliable, energy-efficient performance for both prototyping and production environments.
Note: Do not remove the protective film on the screen surface.
Quick Spec
- Color Mode: RGB (up to 16 million colors)
- Panel Type: Flexible, bendable light-emitting panel
- Interface: Common Anode (R, G, B, V+)
- Forward Voltage (Red): 1.8 – 2.2V
- Forward Voltage (Green): 2.8 – 3.2V
- Forward Voltage (Blue): 2.8 – 3.2V
- Illumination Uniformity: 70%
- Reverse Current: Max 5µA
- Maximum Power Consumption: 3 – 75mW
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
Dimensions
Resources
Shipping List
- 1 x DF Robot Flexible RGB LCD Backlight Module
DF Robot Flexible RGB LCD Backlight Module
- Brand: DF Robot
- Product Code: FIT1033
- Weight: 0.006kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | H19-02 |
| Stellenbosch | In Stock | M99 |
We ship free of charge between branches to complete your order.
-
R38.00 (Inc Tax: R43.70)
