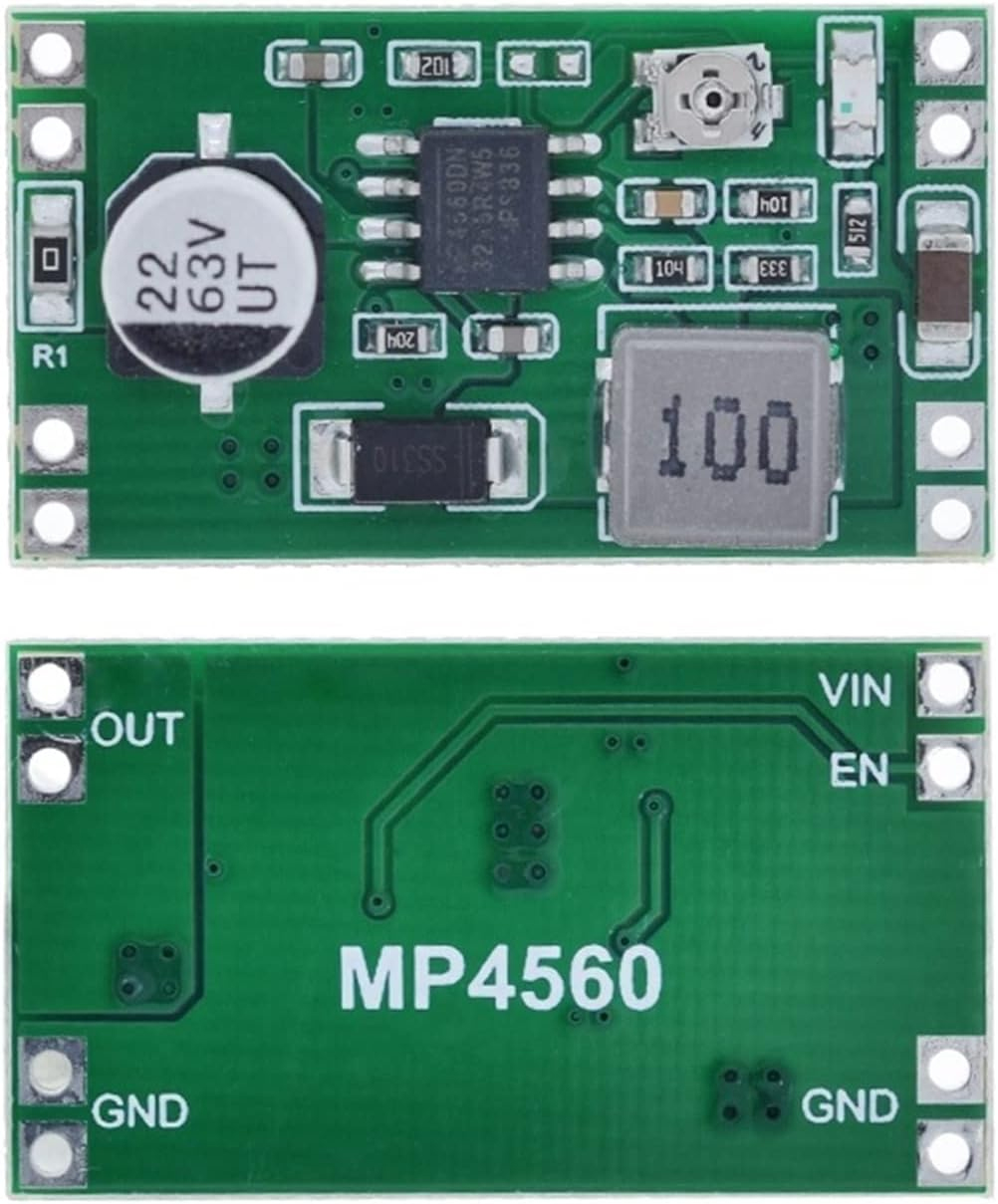

Step-Down Buck Regulator VIN: 6-55V, VOUT: 3-16V@2A
This step-down (buck) voltage regulator module features the MP4560 chip and delivers a stable, efficient 3V to 16V adjustable output from a wide 6V to 55V input range. Supporting up to 2A output current, it’s perfect for automotive, industrial, and battery-powered systems. With high-frequency switching (up to 2MHz), low quiescent current, and reliable protection mechanisms, it ensures consistent performance with minimal EMI.
Note: This is a buck module and cannot boost voltage. The input voltage must always be higher than the output voltage, with a recommended differential pressure of less than 2V. The EN pin enables external control (2.3V–55V, HIGH level).
Quick Spec
- Input Voltage: 6V – 55V
- Output Voltage: 3V – 16V (adjustable via onboard potentiometer)
- Output Current: Up to 2A
- Conversion Efficiency: Up to 96%
- Switching Frequency: Up to 2MHz
- Operating Temperature: -45°C to +85°C
- Shutdown Quiescent Current: 12µA
- EN Pin: High-level enable (2.3V–55V, connected to VIN by default)
- Dimensions: 30 x 17mm

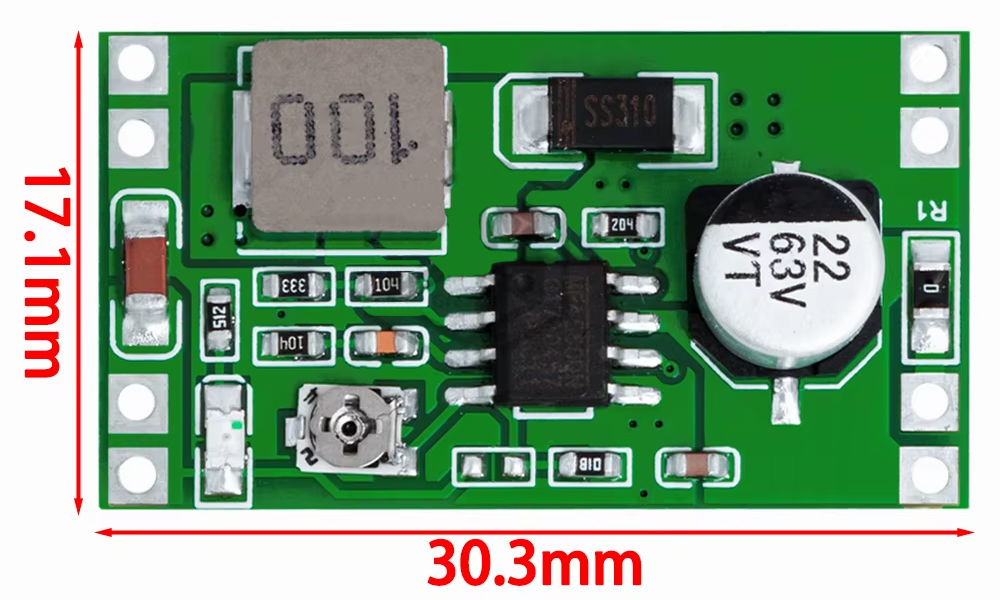

Dimensions
Resources
Shipping List
- 1 x Step-Down Buck Regulator VIN: 6-55V, VOUT: 3-16V@2A
Step-Down Buck Regulator VIN: 6-55V, VOUT: 3-16V@2A
- Brand: Generic
- Product Code: MP4560
- Weight: 0.005kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | EE155 |
| Stellenbosch | In Stock | B0352 |
We ship free of charge between branches to complete your order.
-
R27.00 (Inc Tax: R31.05)
