DF Robot Human Fall Detection Sensor 60GHz

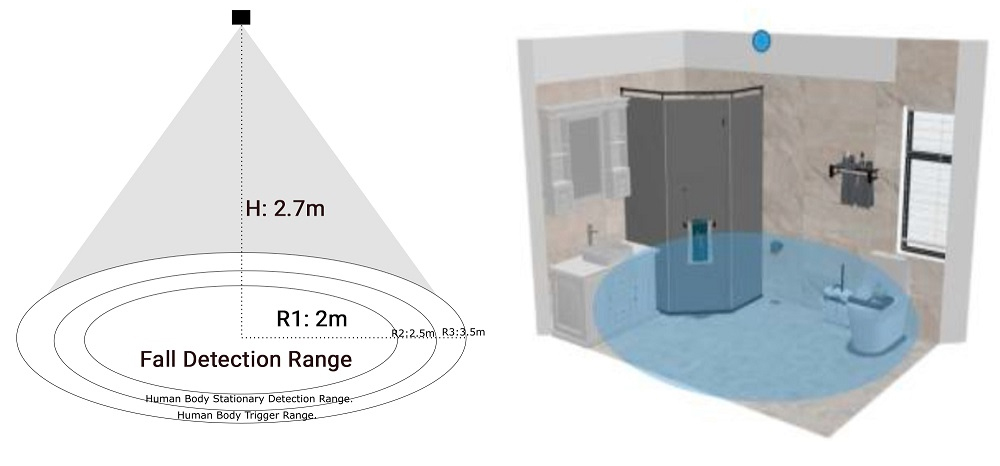

The DF Robot C1001 60GHz mmWave Indoor Fall Detection Sensor is a high-precision radar sensor designed for advanced indoor monitoring, including fall detection and sleep tracking. Operating at 60GHz, it captures human movement and presence accurately, distinguishing both motion and stillness. Its point cloud imaging algorithm identifies postures and reports fall incidents, making it ideal for applications in elderly care and safety monitoring. With a maximum detection range of 11 meters when ceiling-mounted, it provides comprehensive coverage beyond traditional PIR sensors.

In sleep tracking mode, the C1001 monitors body movements, breath frequency, and heart rate, offering insights into sleep quality. Measuring vital signs from a distance of up to 1.5 meters, it provides a detailed sleep score for health analysis. Compatible with popular development boards like ESP32 and Arduino, the sensor integrates easily into custom projects using the Arduino IDE. Disclaimer: This device is not certified for medical use, and any health-related application is at the user’s discretion.

Important Disclaimer

This product is not a certified medical device and is not intended for medical diagnostic or therapeutic use. The manufacturer disclaims responsibility for any medical interpretations arising from use. Relying on this product for medical purposes is at the user’s own risk.

Quick Spec

• Operating Voltage: 5V
• Operating Current: ≤100mA
• Operating Frequency: 61–61.5GHz
• Transmission Power: 6dBm
• Max Detection Distance: 11m
• Radar Detection Angle: 100° x 100°
• Sleep Detection Distance (Chest): 0.4–2.5m
• Breath & Heart Rate Detection Distance (Chest): 0.4–1.5m
• Breath Measurement Range: 10–25 breaths/min
• Heart Rate Measurement Range: 60–100 bpm
• Operating Temperature: -20°C - +60°C

Wiring Diagram

Resources

• Product Page
• Product Wiki
• Dimensions
• GitHub

Shipping List

• 1 x DF Robot Fall Detection Sensor
• 1 x 6-Pin SIL Male Header

DF Robot Human Fall Detection Sensor 60GHz

• Brand: DF Robot
• Product Code: SEN0623
• Weight: 0.005kg
• Product Status : Active
