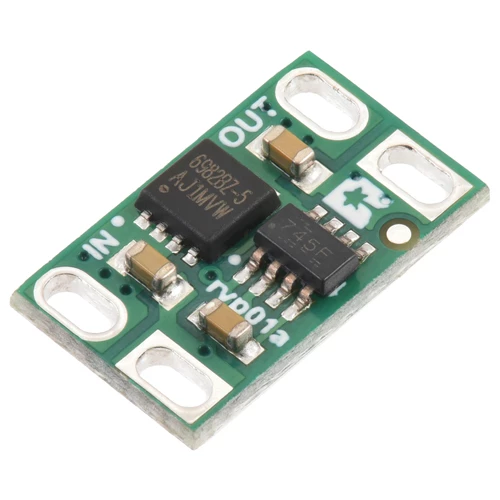

Pololu Reverse Voltage Protector

The Pololu Reverse Voltage Protector safeguards your devices by protecting connected loads from reverse voltages down to -60 V. Unlike traditional diodes, this module does not block reverse current, making it ideal for energy-recovering applications like motor control. It utilizes the LM74500-Q1 reverse voltage protection controller and an N-channel MOSFET to achieve high efficiency with minimal power loss.

5381-005

Operating from 4 V (3.2 V after startup) to 60 V, the module supports continuous currents up to 12 A, with short bursts of up to 40 A. Its compact design offers compatibility with various connectors and optional transient voltage suppression for added flexibility.

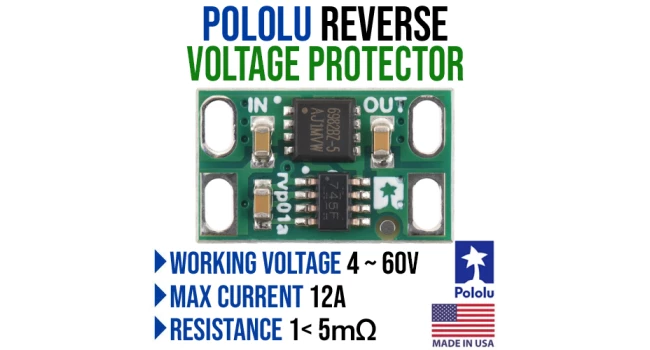

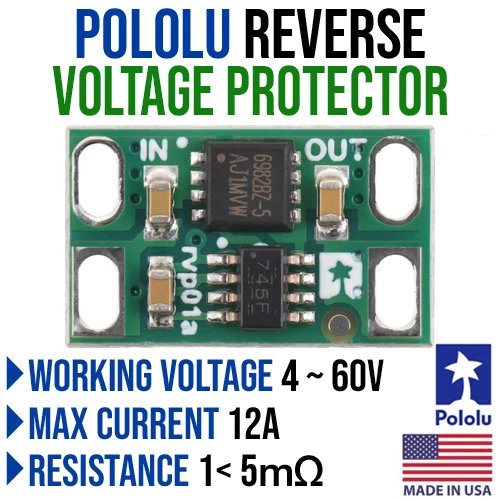

Quick Spec

  • Operating Voltage: 4 V to 60 V (3.2 V after startup)
  • Maximum Current: 12 A continuous, up to 40 A for a few seconds
  • Protection: Down to -60 V reverse voltage
  • Controller: LM74500-Q1
  • MOSFET Path Impedance: ± 5mΩ
  • Connector Support: 5 mm/3.5 mm pitch terminal blocks
  • TVS Support: Pads for optional SMB-size TVS diode
  • Dimensions: 7.6 x 12.7mm

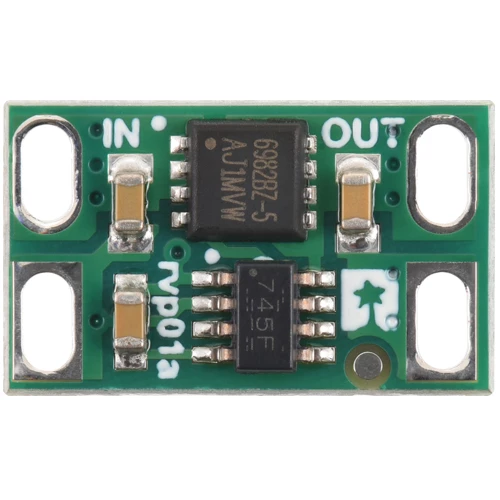

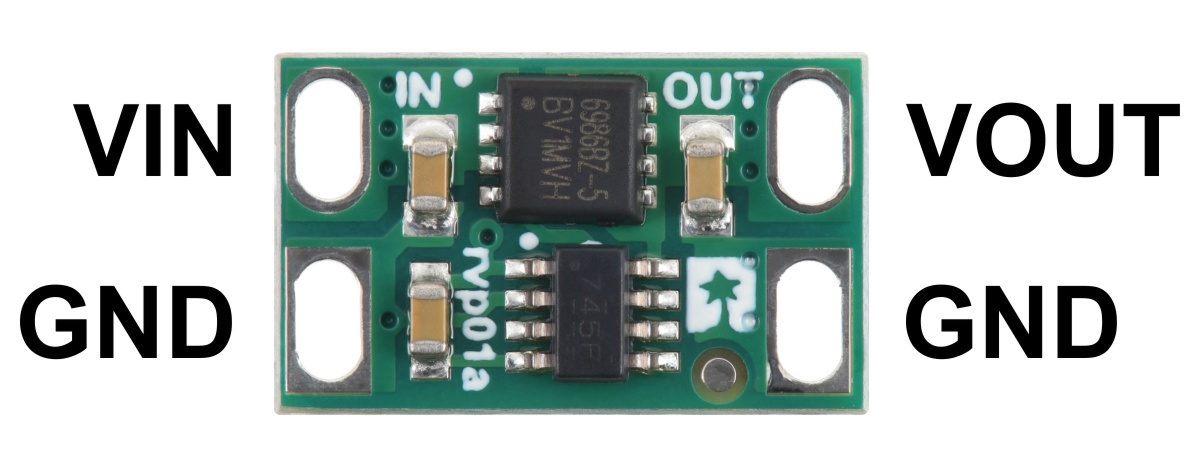

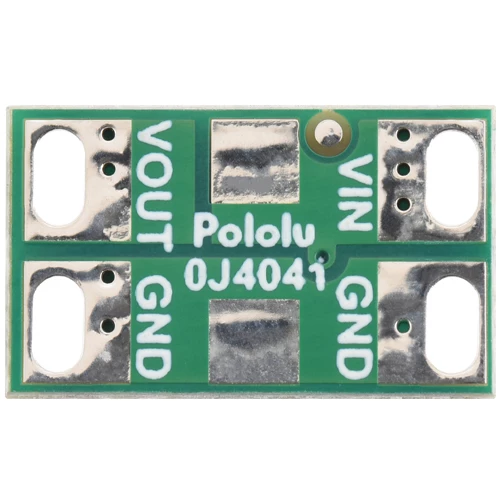

Pinout

5381-003

Schematic

5381-006

Resources

Shipping List

  • 1 x Pololu Reverse Voltage Protector


Pololu Reverse Voltage Protector

  • Brand: Pololu Electronics
  • Product Code: 5381
  • Weight: 0.002kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion In Stock F36
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R39.00 (Inc Tax: R44.85)
