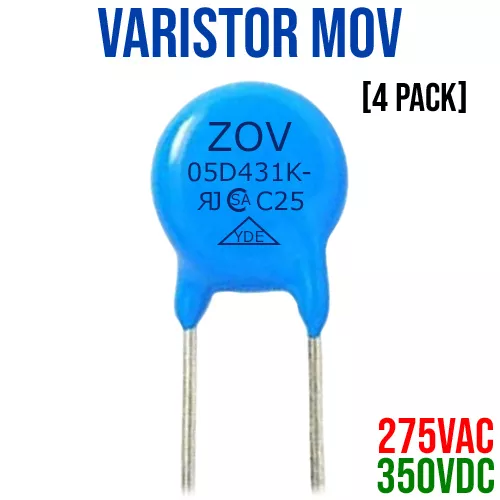

Varistor MOV 275VAC 350VDC - Pitch 5mm (4 Pack)
A varistor (voltage-dependent resistor (VDR)) is a surge protecting electronic component with an electrical resistance that varies with the applied voltage. It has a nonlinear, non-ohmic current–voltage characteristic that is similar to that of a diode. Unlike a diode however, it has the same characteristic for both directions of traversing current.
Quick Spec
- Varistor Voltage: 430V (387~473)
- Maximum AC Voltage Rating: 275VAC
- Maximum DC Voltage Rating: 350VDC
- Clamping Voltage: 745V
- Clamping Current: 5A
- Material: Metal
- Energy: 13J (20J Max.)
- Diameter: 6mm
- Maximum Surge Current: 800A
- Capacitance: 60pF
- Thickness: 3mm
- Lead Pitch: 4.5mm
- Dimensions: 6 x 3mm
Circuit Diagram
Resources
Shipping List
- 4 x Varistor MOV 275VAC 350VDC - 6mm
Varistor MOV 275VAC 350VDC - Pitch 5mm (4 Pack)
- Brand: Generic
- Product Code: 5D431
- Weight: 0.003kg
- Product Status : Active
Stock
| Warehouse | Stock Status | Location |
|---|---|---|
| Centurion | In Stock | I4-02 |
| Stellenbosch | In Stock | V34 |
We ship free of charge between branches to complete your order.
-
R10.00 (Inc Tax: R11.50)
