Pololu Ideal Diode Reverse Voltage Protector

The Pololu Ideal Diode Reverse Voltage Protector safeguards connected devices from reverse voltage down to -60 V, ensuring reliable protection against accidental polarity reversal. Operating from 4 V (3.2 V after startup) to 60 V, this compact module uses an LM74700-Q1 ideal diode controller and N-channel MOSFET for high performance and efficiency.

5383-004

With a low path impedance of 5 mΩ, it supports up to 12 A continuous current and short bursts up to 40 A. The module blocks reverse current from output to input and is compatible with various connectors, making it ideal for sensitive electronics in automotive, industrial, and DIY applications.

Quick Spec

  • Operating Voltage: 4V - 60V (3.2V after startup)
  • Reverse Voltage Protection: Down to -60V
  • Continuous Current: 12A (Max.)
  • Transient Current: Up to 40A
  • Path Impedance: ± 5mΩ
  • Controller: LM74700-Q1
  • Dimensions: 7.6 x 12.7mm

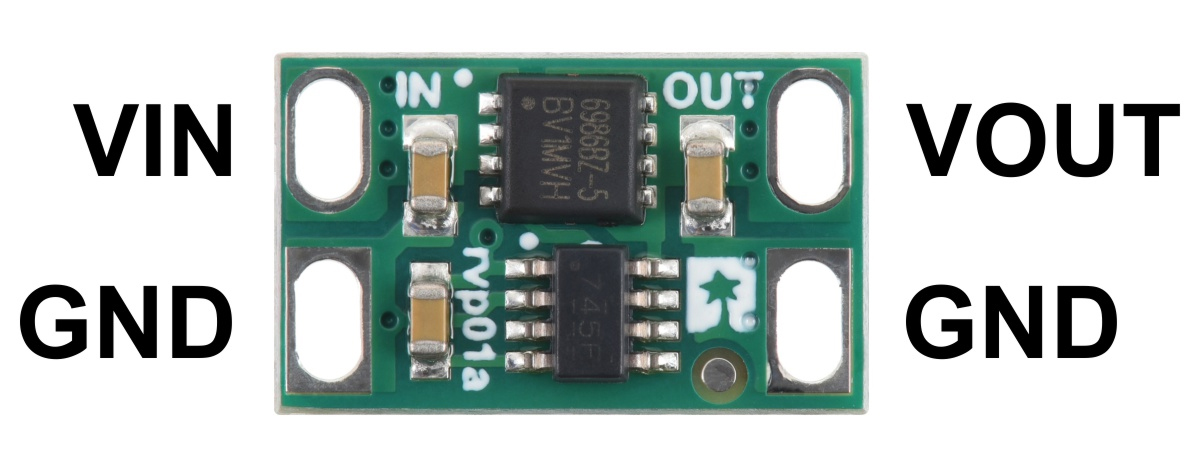

Pinout

5383-003

Schematic

5383-006

Resources

Shipping List

  • 1 x Pololu Ideal Diode Reverse Voltage Protector


Pololu Ideal Diode Reverse Voltage Protector

  • Brand: Pololu Electronics
  • Product Code: 5383
  • Weight: 0.002kg
  • Product Status : Active
  • Stock

    Warehouse Stock Status Location
    Centurion No Stock
    Stellenbosch No Stock
    Bulk Location No Stock

    We ship free of charge between branches to complete your order.

  • R45.00 (Inc Tax: R51.75)
