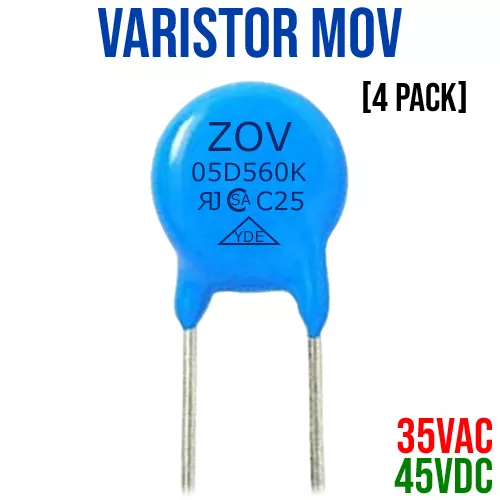

Varistor MOV 35VAC 45VDC - Pitch 5mm (4 Pack)
A varistor (voltage-dependent resistor (VDR)) is a surge protecting electronic component with an electrical resistance that varies with the applied voltage. It has a nonlinear, non-ohmic current–voltage characteristic that is similar to that of a diode. Unlike a diode however, it has the same characteristic for both directions of traversing current.
Quick Spec
- Varistor Voltage: 56 (50 ~ 62)
- Maximum AC Voltage Rating: 35VAC
- Maximum DC Voltage Rating: 45VDC
- Clamping Voltage: 123V
- Clamping Current: 1A
- Material: Metal
- Energy: 1.3J (1.8J Max.)
- Maximum Surge Current: 250A
- Capacitance: 450pF
- Thickness: 2.5mm
- Lead Pitch: 5mm
- Dimensions: 6 x 2.5mm
Circuit Diagram
Resources
Shipping List
- 4 x Varistor MOV 35VAC 45VDC - 6mm
Varistor MOV 35VAC 45VDC - Pitch 5mm (4 Pack)
- Brand: Generic
- Product Code: 5D560
- Weight: 0.003kg
- Product Status : Active
